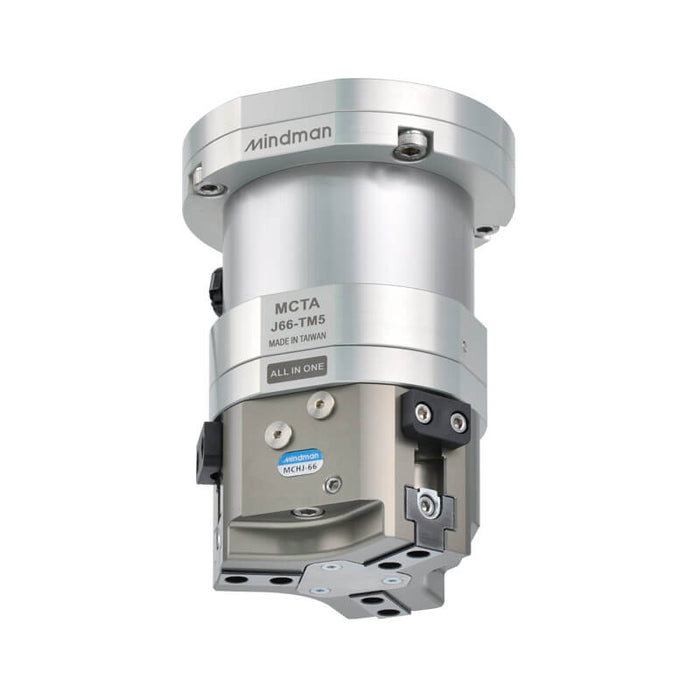

Mindman MCTA series

Mindman AK-MCTA Accessory Kit for MCTA Grippers

SKU AK-MCTA-J66-TM
by Mindman
$24.59 - $27.09
$27.09
$24.59 - $27.09
$27.09
Availability:
In stock
Availability:
In stock

Mounting accessory kit (hex bolts, pins, centering sleeves) for Mindman MCTA grippers.

Select the options below; the full Mindman ordering code is shown as the SKU (AK-MCTA-[module]-TM).

Price is the Mindman list price.

Specifications

Acting type Double acting
Size 66, 80
Stroke per-jaw (mm) 6, 8
Effective external gripping force(N) 188, 285 (※1)
Effective internal gripping force (N) 194, 290 (※1)
Close/Open time (s) 0.03, 0.04
Medium Air
Operating pressure range 0.2~0.7 MPa, 0.3~0.7 MPa
Ambient temperature +5~+80°C
Lubrication Not required
Sensor switch RDFE: Non-contact
Accessories Accessory kits
Weight (kg) ≈1.3
Recom. work piece weight (kg) 3.8, 2.6 (※2)
Remark ※1. Under the condition of clamping length 40mm and operation pressure 0.6 MPa.; ※2. The weight limit of gripping workpiece depends on the load limit of robot arm and usage parameters.
Series Mindman MCTA
