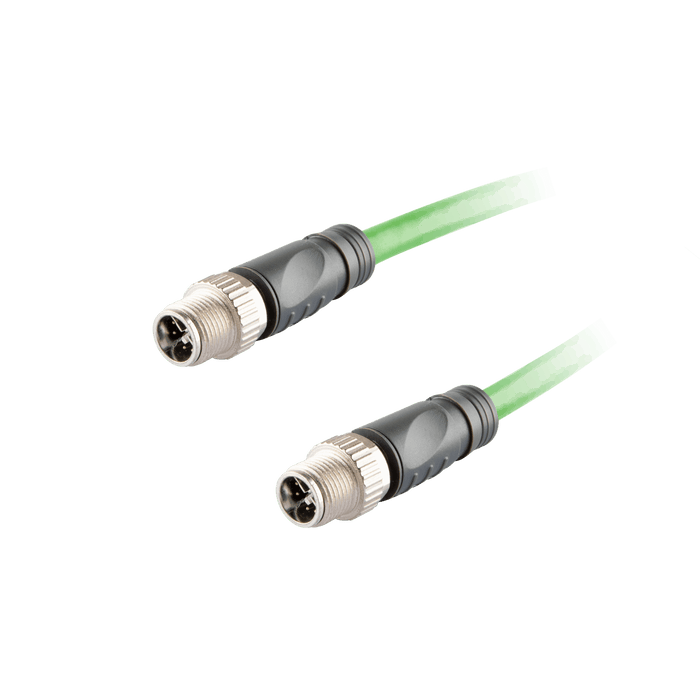

Ethernet Cordset,Double-ended, M12 X-code 8-pin Straight Male,to M12 X-code 8-pin Straight Male,With PVC green jacket 2 × 2 × 4 ×0.14 mm²(26 AWG) Cable,2m

E11XB8607M020

SKU E11XB8607M020
by ELCO Industrial Automation

Ethernet Cordset,Double-ended, M12 X-code 8-pin Straight Male,to M12 X-code 8-pin Straight Male,With PVC green jacket 2 × 2 × 4 ×0.14 mm²(26 AWG) Cable,2m

$78.70 - $78.70
$78.70
$78.70 - $78.70
$78.70
Availability:
In stock

Ethernet Cordset,Double-ended, M12 X-code 8-pin Straight Male,to M12 X-code 8-pin Straight Male,With PVC green jacket 2 × 2 × 4 ×0.14 mm²(26 AWG) Cable,2m

Specifications

Cable jacket material PVC
Cable jacket color green
Wire insulation material PE
Wire insulation color WH/OG, OG, WH/GN, GN, WH/BN, BN, WH/BU, BU
Shielded/Unshielded YES
Drag chain Fixed installation
IP rating IP67
Cable length 2 m
Product type Ethernet Cordset
Termination type Double-end

No additional information at this time.

Downloads

CE ELCO_Communication Connector_CE.pdf
Datasheet DS_C_E11XB8_V1.3_EN.pdf
3D Drawing ELCO_E11XB8XXXMXXX.stp
