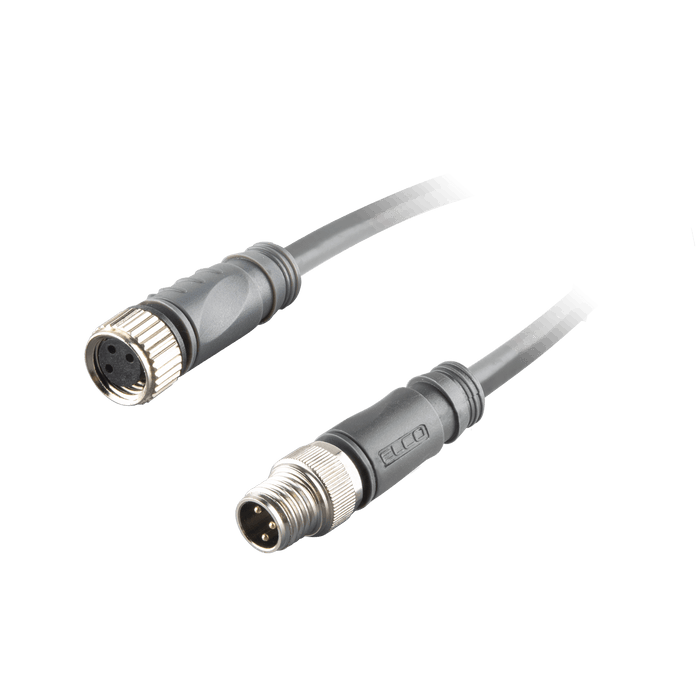

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Straight Female, to M8 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 0.6 m

Specifications

Wire insulation material PVC
Cable length 0.6 m
Wire insulation color BN, BU, BK
IP rating IP67
Wire cross-section 0.25 mm² (24 AWG)
Shielded/Unshielded NO
Coating contact material Gold plated copper
Material contact TPU
Nut/bolt material Zinc die casting
Rated voltage 60 V AC/DC

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M8.pdf
Datasheet ELCO_M8 Double-ended connector DataSheet_EN.pdf
3D Drawing ELCO_CO8.3-X-C8.3.stp
