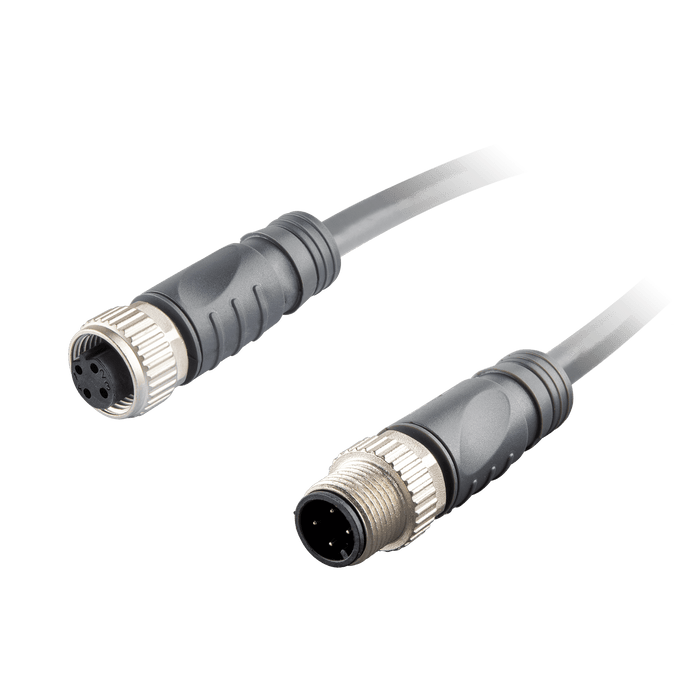

Sensor-Actuator Cordset, Double-ended, M12 A-code 4-pin Straight Female, to M12 A-code 4-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) Shielded cable, 2 m

Specifications

Flex & Torsion NO
Wire cross-section 0.34 mm² (22 AWG)
Nut/bolt material Zinc die casting
The head material TPU
Cable length 2 m
Coating contact material Gold plated copper
Wire insulation color BN, WH, BU, BK
Drag chain Fixed installation
Cable jacket material PVC
Wire insulation material PVC

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M12.pdf
Datasheet ELCO_M12 Double-ended connector DataSheet_CE.pdf
3D Drawing ELCO_CO12.4-X-C12.4.stp
