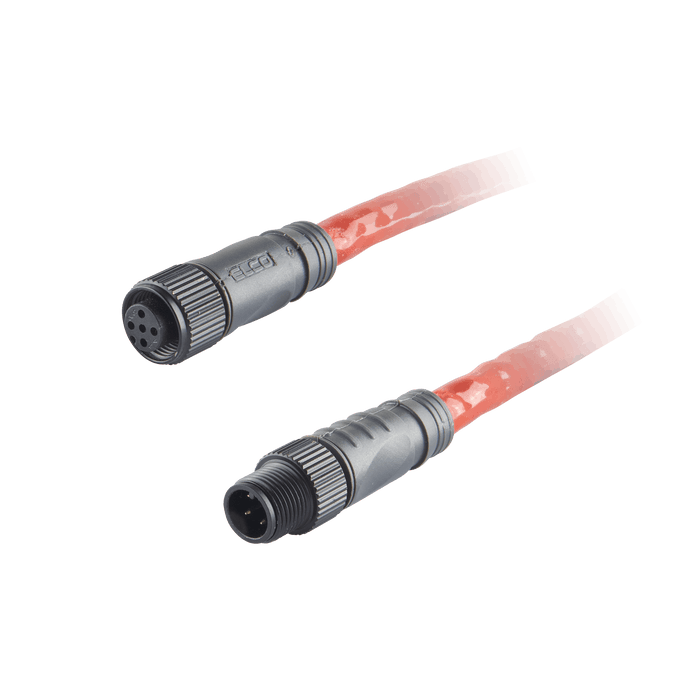

Sensor-Actuator Cordset, Double-ended, M12 A-code 4-pin Straight Female, to M12 A-code 4-pin Straight male, with PTFE Coating, with PVC grey jacket 0.34mm² (22 AWG) cable and red Silicon Glass Fiber Sheath, 2 m

CO12.4-2-C12.4/PF/SIC

SKU CO12.4-2-C12.4/PF/SIC
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M12 A-code 4-pin Straight Female, to M12 A-code 4-pin Straight male, with PTFE Coating, with PVC grey jacket 0.34mm² (22 AWG) cable and red Silicon Glass Fiber Sheath, 2 m

$30.85 - $30.85
$30.85
$30.85 - $30.85
$30.85
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M12 A-code 4-pin Straight Female, to M12 A-code 4-pin Straight male, with PTFE Coating, with PVC grey jacket 0.34mm² (22 AWG) cable and red Silicon Glass Fiber Sheath, 2 m

Specifications

IP rating IP67
Wire insulation material PVC
The head material TPU
Cable jacket material Silicon+PVC
Product type Sensor-Actuator Cordset
Termination type Double-end
Head 1 Type M12
Head 1 Coding A-code
Head 1 Number of contacts 4
Head 1 Shape Straight
Head 1 Gender Female
Head 2 Type M12

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
Datasheet DS_C_CO12.4_C12.4_PF_SIC_V1.1_EN.pdf
