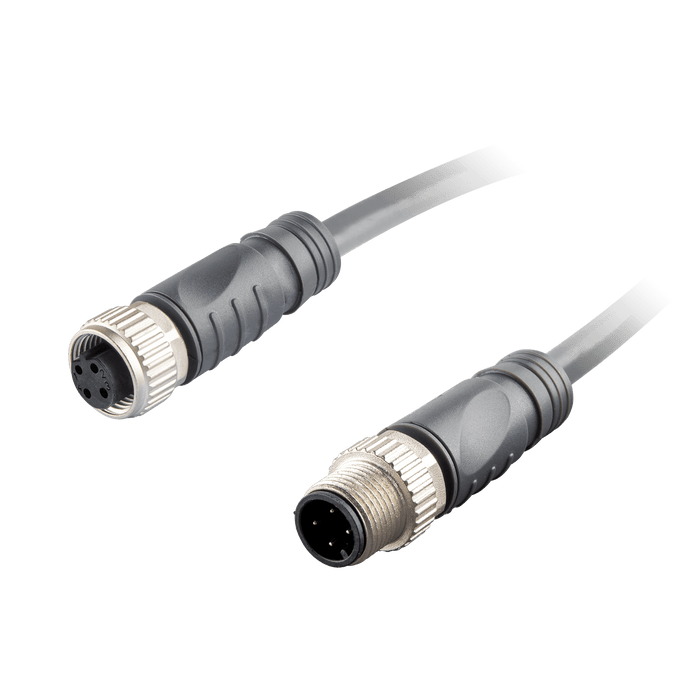

Sensor-Actuator Cordset, Double-ended, M12 A-code 4-pin Straight Female, with PNP LED, to M12 A-code 4-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 2 m

Specifications

IP rating IP67
Wire cross-section 0.34 mm² (22 AWG)
Nut/bolt material Zinc die casting
LED indicator PNP
The head material TPU
Coating contact material Gold plated copper
Cable jacket material PVC
Wire insulation color BN, WH, BU, BK
Drag chain Fixed installation
Wire insulation material PVC

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M12.pdf
Datasheet ELCO_M12 Double-ended connector DataSheet_CE.pdf
3D Drawing ELCO_CO12.4-X-C12.4.stp
