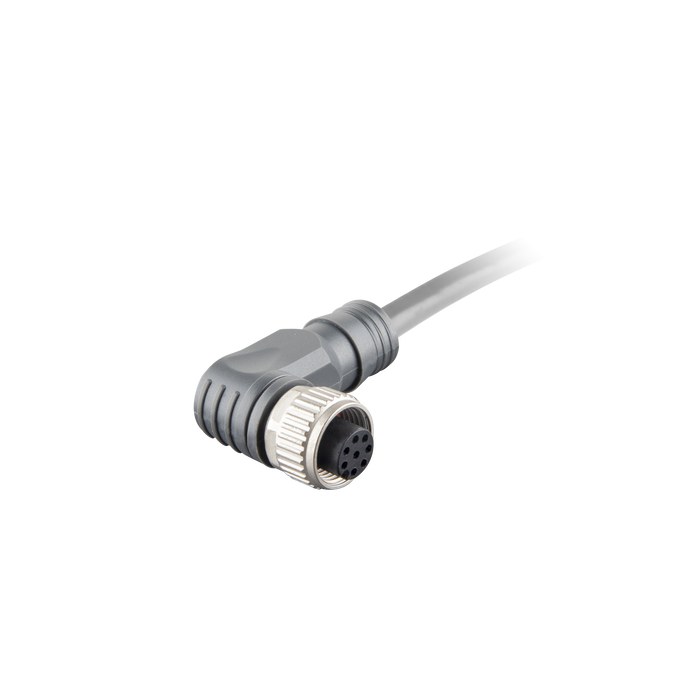

Sensor-Actuator Cordset, Single-ended, M12 A-code 8-pin Angled Female, with PVC grey jacket 0.25mm² (24 AWG) Shielded cable, 20 m

Specifications

LED indicator NO
Wire insulation material PVC
Cable jacket material PVC
Drag chain Fixed installation
Cable length 20 m
IP rating IP67
Wire cross-section 0.25 mm² (24 AWG)
Wire insulation color WH, BN, GN, YE, GY, PK, BU, RD
The head material TPU
Nut/bolt material Zinc die casting

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M12.pdf
Datasheet ELCO_M12 单端预注IO连接器技术资料_CN.pdf
Datasheet ELCO_M12 Single-ended connector DataSheet_EN.pdf
3D Drawing ELCO_CBO12.8-X.stp
