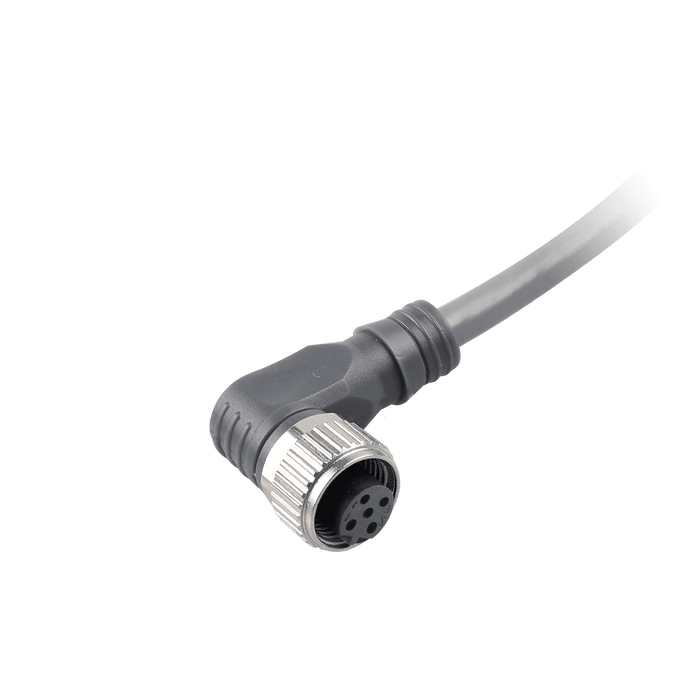

Sensor-Actuator Cordset, Single-ended, M12 A-code 5-pin Angled Female, with PVC grey jacket 0.34mm² (22 AWG) Shielded cable, 4 m

Specifications

LED indicator NO
IP rating IP67
Nut/bolt material Zinc die casting
Wire cross-section 0.34 mm² (22 AWG)
Shielded/Unshielded YES
The head material TPU
Coating contact material Gold plated copper
Wire insulation color BN, WH, BU, BK,GY
Cable jacket material PVC
Wire insulation material PVC

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M12.pdf
Datasheet ELCO_M12 单端预注IO连接器技术资料_CN.pdf
Datasheet ELCO_M12 Single-ended connector DataSheet_EN.pdf
3D Drawing ELCO_CBO12.5-X.stp
