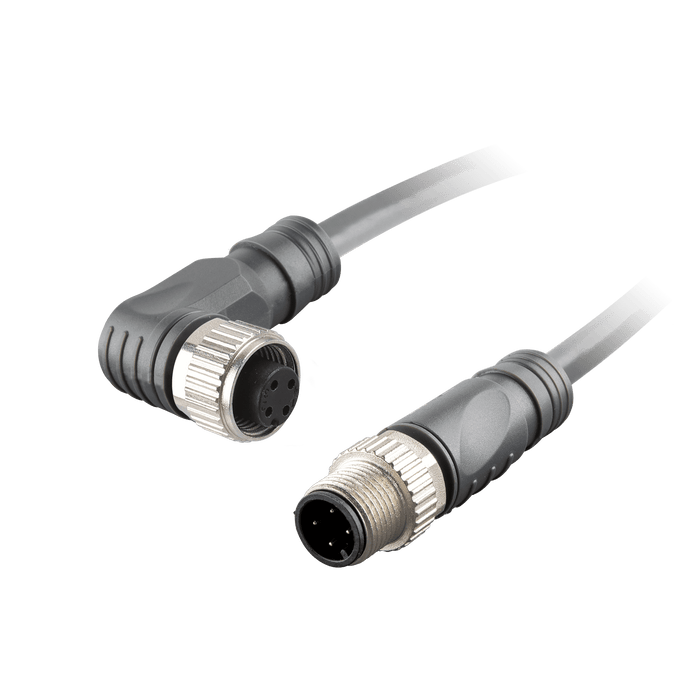

Sensor-Actuator Cordset, Double-ended, M12 A-code 3-pin Angled Female, to M12 A-code 3-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 1 m

CBO12.3-1-C12.3

SKU CBO12.3-1-C12.3
by ELCO Industrial Automation

Sensor-Actuator Cordset, Double-ended, M12 A-code 3-pin Angled Female, to M12 A-code 3-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 1 m

$12.37 - $12.37
$12.37
$12.37 - $12.37
$12.37
Availability:
In stock

Sensor-Actuator Cordset, Double-ended, M12 A-code 3-pin Angled Female, to M12 A-code 3-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 1 m

Specifications

Wire cross-section 0.34 mm² (22 AWG)
LED indicator NO
Nut/bolt material Zinc die casting
The head material TPU
Drag chain Fixed installation
Coating contact material Gold plated copper
Cable jacket material PVC
Wire insulation material PVC
Cable length 1 m
Wire insulation color BN, BU, BK

No additional information at this time.

Downloads

CE ELCO_signal connector_CE.pdf
UL ELCO_UL-M12.pdf
Datasheet ELCO_M12 Double-ended connector DataSheet_CE.pdf
3D Drawing ELCO_CBO12.3-X-C12.3.stp
