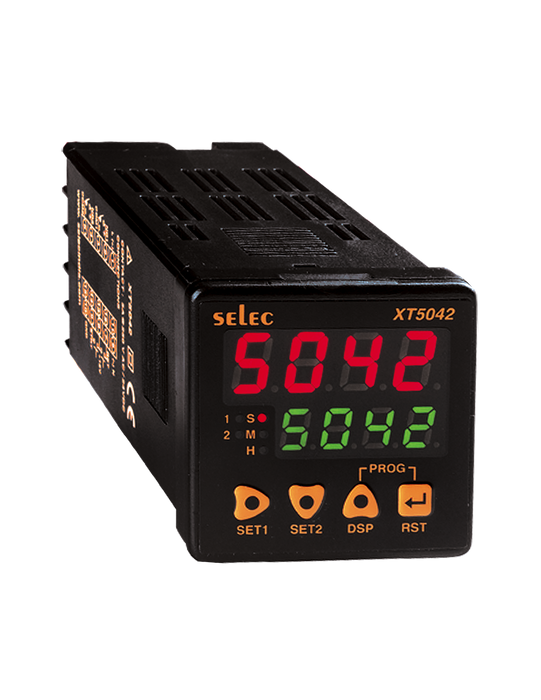

XT5042-CU - Multifunction Digital Timer

Panel Mount


Features

• Multifunction - 7 Timing Functions

• 9 Time Ranges, Seconds/Minutes/Hours

• Dual Display, 4 Digit, 7 segment LED

• 2 Setpoints

Analog / Digital Protection Relays

Protection
Altech is pleased to offer a variety of protection relays covering:

  • Phase Monitoring

  • Voltage Monitoring

  • Current Monitoring

  • Frequency Monitoring

Current Leakage / Ground Fault Monitoring Protection relays help to maintain systems and ensure that proper action is taken when a fault is detected. Such functions help to preserve productivity and operational effectiveness of integral components.

Specifications

Part Number XT5042-CU
Supply Voltage 85-270V AC/DC
LED Indication LED 1: Relay 1, LED 2: Relay 2, LED 3: sec., LED 4: Min., LED 5: Hrs.
Process Contollers - Input Voltage 85-270V AC/DC (50/60Hz)
Main Output 2 SPST - 2NO - 5 @ 230V AC
Reset Front, Remote/ Power interruption (programmable)
Power Consumption 5VA max
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 75°C (-4 to 167°F)
Humidity (Non-Condensing) 95% Relative Humidity
Weight 175 grams (.385 lbs)
Display Type Liquid Crystal Display with backlight
Digits 2 rows of 4 digits
Protection Level IP65 (for faceplate)
Set Points 2
Modes ON delay / Interval / Cyclic ON first / Cyclic OFF first / Forward-pause-reverse / Instantaneous+delayed batch
Counting Direction Up/Down
Memory 10 years
Time Ranges 0-99.99 sec 0-999.9 sec/min/hr 0-9999 sec/min/hr 0-99:59 min: sec 0-99:59 hr:min
Start Input Gate / Pulse start (programmable)
Timer Setting +/-5% of Full Scale Repeat +/-0.5% or 50m sec.
