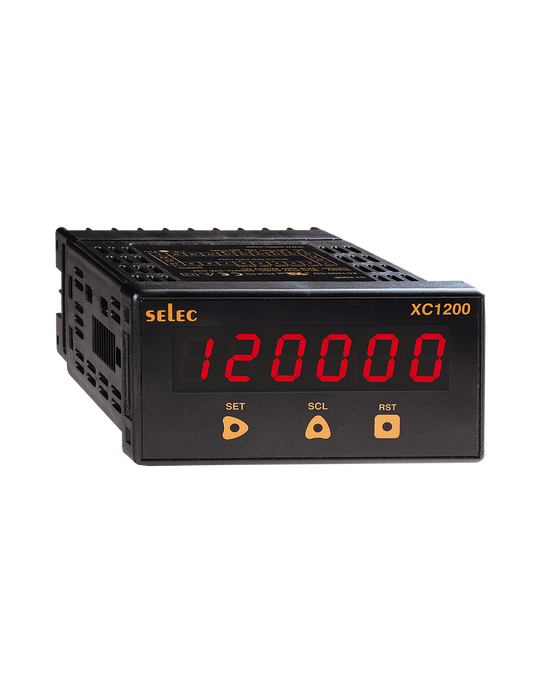

XC1200-CU - Compact 6 Digit Counter / 5 Digit RPM Indicator

7 Segment LED Display


Features

• 6 Digit, 7 Segment LED Counter,

and 5 digit RPM indicator

• Compact Size

• Inbuilt Sensor Supply

• 2 Set Points

Analog / Digital Protection Relays

Protection
Altech is pleased to offer a variety of protection relays covering:

  • Phase Monitoring

  • Voltage Monitoring

  • Current Monitoring

  • Frequency Monitoring

Current Leakage / Ground Fault Monitoring Protection relays help to maintain systems and ensure that proper action is taken when a fault is detected. Such functions help to preserve productivity and operational effectiveness of integral components.

Specifications

Part Number XC1200-CU
Supply Voltage 85-270V AC/DC
LED Indication LED 1: Relay 1, LED 2: Relay 2
Process Contollers - Input Voltage 85-270V AC/DC (50/60Hz)
Input Measurement NPN/PNP
Main Output DPDT -2 C/O - 5A @ 230V AC / 24 V DC
Reset Front (user selectable), Remote
Power Consumption 5VA max
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 75°C (-4 to 167°F)
Humidity (Non-Condensing) 95% Relative Humidity
Weight 230 grams (.507 lbs)
Display Type 7 Segment LED Display
Digits 1 row of 6 digits
Resolution 1/0.1/0.01/0.001/0.0001 Degree
Modes ON Delay / Interval delay /Auto reset / Time pulse repeat
Sensor Supply Inbuilt, 12V DC, 30mA
Input Type Voltage Pulse (3-30V DC) from proximity, switches, encoders, solid state devices, potential free contact
Input Speed A) 0-30Hz B) 0-2.5kHz C) 0-5kHz (for up and down mode only)
Range 999999 counts
Counting Direction Up, Down, Bidirectional, Quadrature
Memory Yes
Scale Factor 0.00001-9.99999 X 10n , n equals -3, -2, -1, 0, 1, 2
Rate .05% +/- 2 counts

No additional information at this time.
