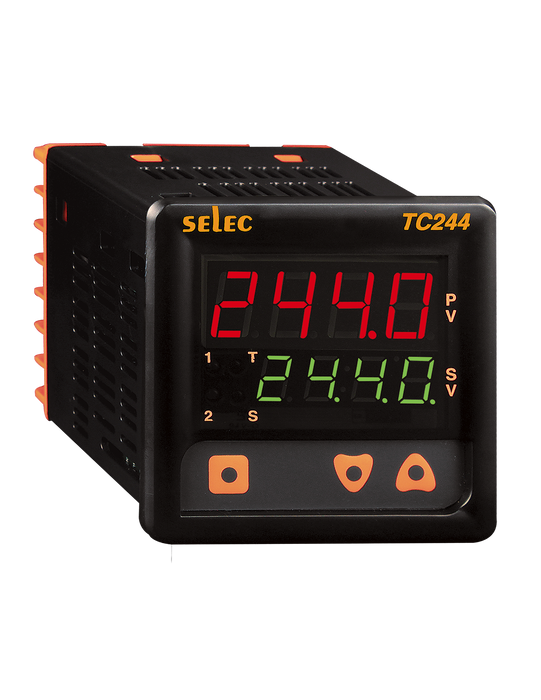

TC244AX-CU - Dual Display, 2 Output Temperature Controllers

7 Segment LED Display


Features

• Dual Display, 4 digits, 7 segment LED

• TC/RTD Inputs

• PID, ON-OFF Control

• Dual Setpoint

• °C / °F

• Field selectable Control Output (Relay or SSR)

• Additional Aux. Output

• Easy to use

Analog / Digital Protection Relays

Protection
Altech is pleased to offer a variety of protection relays covering:

  • Phase Monitoring

  • Voltage Monitoring

  • Current Monitoring

  • Frequency Monitoring

Current Leakage / Ground Fault Monitoring Protection relays help to maintain systems and ensure that proper action is taken when a fault is detected. Such functions help to preserve productivity and operational effectiveness of integral components.

Specifications

Part Number TC244AX-CU
Supply Voltage 85-270V AC/DC
Input Measurement Thermocouple (J,K,T,R,S) / RTD (Pt100)
Main Output Selectable- SPDT- 10A @250V AC / 30V DC, resistive OR SSR Drive 12V DC, 50mA
Hysteresis 0.1-99.9
Power Consumption 5VA max @230V AC
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 70°C (-4 to 158°F)
Humidity (Non-Condensing) 95% Relative Humidity
Weight 200 grams (.44 lbs)
Display Type 7 Segment LED Display
Digits 2 rows of 4 digits
Resolution 1/0.1 Degree for TC/RTD / Fixed 1 Degree for R and S TC
Control Output 10A Relay or 12V DC SSR
Sampling Time 0.25 sec
Input Filter (FTC) 0.2 to 10.0 sec
PID Proportional Band (P): 0-400° Integral Time (I): 0-999 sec Derivative Time (D): 0-200 sec
Temperature Unit °C / °F
Cycle Time 0.1 to 99.9 sec.
Manual Reset Value -19.9° to 19.9°
Set Points 2
J, K,T / TC INPUTS* 0.25% of F.S. ±1°
R, S INPUTS* 0.5% of F.S. ±2°
RTD INPUT 0.1% of F.S. ±1°
Auxiliary Output SPDT- 5A @250V AC / 30V DC, resistive (TC544A: SPST Relay)
