Altech R2N-2012-23-5230-WTL DPDT, 12A Industrial Electromagnetic Relay

Altech R2N-2012-23-5230-WTL DPDT, 12A Industrial Electromagnetic Relay

SKU R2N-2012-23-5230-WTL
by Altech
$15.60 - $15.60
$15.60
$15.60 - $15.60
$15.60
Availability:
In stock

R2 DPDT AC 50/60Hz Coil, Industrial Electromagnetic Relay

Standard Features:

  • Compact size
  • Relays of general application
  • Cadmium - free contacts
  • AC and DC coils
  • For plug-in sockets, 35 mm rail mount or on panel mounting
  • WT (mechanical indicator + lockable front test button) - standard features of relays for plug-in sockets. Relays may be provided with the test buttons (no latching) and plugs (see data sheet page 115)
  • AUCOTEAM GmbH Berlin - railway standards.

Specifications

Part Number R2N-2012-23-5230-WTL
Coil Voltage (V) 230
Coil Type AC 50/60Hz
Coil resistance at 20 °C in Ω 16100
Coil operating range max. (at 55°C) 253
Coil operating range min. (at 20°C) 184
Options With mechanical indicator + lockable front test button + light indicator (LED)
Number and type of contacts DPDT
Contact material AgNi
Rated / max. switching voltage AC 250 V / 440 V
Min. switching voltage 10 V
Rated load (capacity) AC1 12 A / 250 V AC
Rated load (capacity) AC15 3 A / 120 V; 1.5 A / 240 V (B300)
Rated load (capacity) AC3 370 W (single-phase motor)
Rated load (capacity) DC1 12 A / 24 V DC
Rated load (capacity) DC13 0.22 A / 120 V; 0.1 A / 250 V (R300)
Min. switching current 5 mA
Max. inrush current 24 A
Rated current 12A
Max. breaking capacity AC1 3000 VA
Min. breaking capacity 0.3 W
Contact resistance ≤ 100 mΩ
Max. operating frequency at rated load AC1 1200 cycles/hour
Max. operating frequency - No load 18000 cycles/hour
Rated voltage 50/60 Hz AC: 6 ... 240 V, DC: 5 ... 220 V
Must release voltage AC: ≥ 0.2 Un; DC: ≥ 0.1 Un
Rated power consumption AC: 1.6 VA, DC: 0.9 W
Insulation rated voltage 250 V AC
Rated surge voltage 4000 V 1.2 / 50 µs
Overvoltage category III
Insulation pollution degree 3
Dielectric strength between coil and contacts 2500 V AC type of insulation: basic
Dielectric strength contact clearance 1500 V AC type of clearance: micro-disco
Dielectric strength pole - pole 2500 V AC type of insulation: basic
Contact - Coil distance Clearance ≥ 2.5 mm
Contact - Coil distance Creepage ≥ 4 mm
Operating / release time (Typical) AC: 10 ms / 8 ms; DC: 13 ms / 3 ms
Electrical life- resistive AC1 greater than 10^5; 12 A. 250 V AC
Mechanical life (cycles) greater than 2 x 10⁷

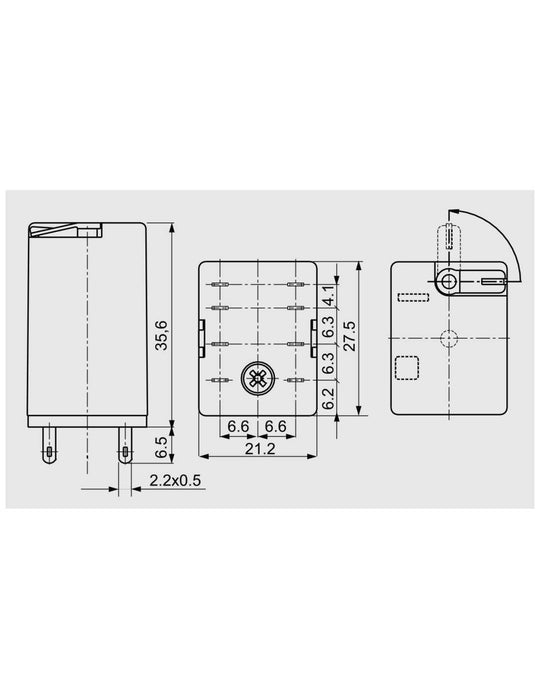

Dimensions (L x W x H) 27.5 x 21.2 x 35.6 mm
Weight 35 g
Storage Temperature -40...+85 °C
Operating Temperature AC: -40...+55 °C; DC: -40...+70 °C
Protection Category IP 40 PN-EN 60529
Environmental Protection RTI PN-EN 116000-3
Shock resistance (NO/NC) 10 g / 5 g
Vibration resistance 5 g 10...150 Hz
Solder bath temperature max. 270 °C
Soldering time max. 5 s
Relay Type R2
Standard Pack 10
