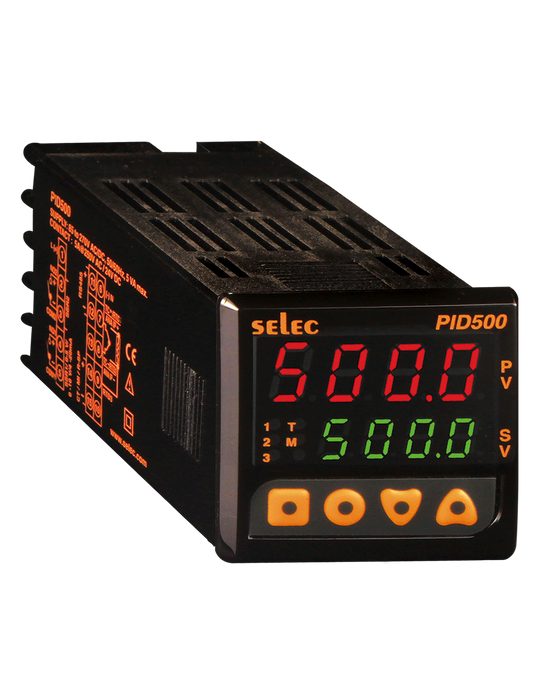

Altech PID500-1-0-04-CU Advanced Dual Display, 3 Outputs Temperature Controllers

Altech PID500-1-0-04-CU Advanced Dual Display, 3 Outputs Temperature Controllers

SKU PID500-1-0-04-CU
by Altech
$397.75 - $397.75
$397.75
$397.75 - $397.75
$397.75
Availability:
In stock

PID500-1-0-04-CU - Advanced Dual Display, 3 Outputs Temperature Controllers

7 Segment LED Display


Features

• 4 + 4 digits , 7 segment LED dual display

• TC / RTD Input, Analog input

• ON-OFF, PID

• Heat Cool PID

• °C / °F

• Ramp Soak

• Soft Start

• RS485 Communication (PID500 only)

Analog / Digital Protection Relays

Protection
Altech is pleased to offer a variety of protection relays covering:

  • Phase Monitoring

  • Voltage Monitoring

  • Current Monitoring

  • Frequency Monitoring

Current Leakage / Ground Fault Monitoring Protection relays help to maintain systems and ensure that proper action is taken when a fault is detected. Such functions help to preserve productivity and operational effectiveness of integral components.

Specifications

Part Number PID500-1-0-04-CU
Supply Voltage 85-270V AC/DC
Process Contollers - Input Voltage 85-270V AC/DC (50/60Hz)
Input Measurement Thermocouple (J,K,T,R,S,C,E,B,N,L,U,W, Platinel II) / RTD (Pt100) Signal Inputs (-5 to 56mV, 0 to 10V, 0 to 20mA)
Main Output Selectable- SPDT- 10A @250V AC / 30V DC, resistive OR SSR Drive 12V DC, 50mA
Hysteresis 0.1-99.9
Power Consumption 5VA max @230V AC
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 75°C (-4 to 167°F)
Humidity (Non-Condensing) 85% Relative Humidity
Weight 95 grams (.43 lbs)
Display Type 7 Segment LED Display
Digits 2 rows of 4 digits
Resolution 1/0.1 Degree for TC/RTD / Fixed 1 Degree for R and S TC
Sampling Time 200msec
Input Filter (FTC) 1 to 99 sec
Control Action 1) PID Control with Auto Tuning 2) ON-OFF Control
PID Proportional Band (P): 0-400° Integral Time (I): 0-999 sec Derivative Time (D): 0-200 sec
Alarm Mode Deviation High/Low, Absolute High/Low, Band, Sensor Break PID330- Full Scale High, Full Scale Low
Temperature Unit °C / °F
Cycle Time 0.1 to 100 sec.
Manual Reset Value -99.9° to 19.9°
Set Points 2
J, K,T / TC INPUTS* 0.25% of F.S. ±1°
R, S INPUTS* 0.5% of F.S. ±2°
RTD INPUT 0.1% of F.S. ±1°
Auxiliary Output 2 Selectable- SPST- 5A @230V AC / 30V DC, resistive OR SSR Drive(Voltage Pulse)- 12V DC, 20mA
Retransmission 4 to 20mA DC, 0-10V DC (100msec. Update Rate)
Output 1 SSR
Output 2 Relay
Relay/SSR Relay
RS485 Yes
