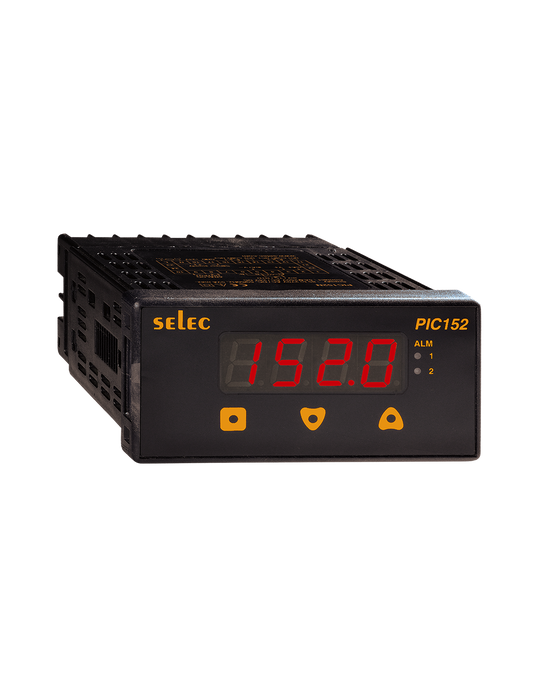

PIC152N-B-2-CU - Advanced Process Indicator

7 Segment LED Display


Features

• 4 Digit 7 Segment LED

• TC / RTD / Analog Inputs

• °C / °F

• 2 Alarm Outputs

• 24V DC Sensor Supply

• Optional Features

Retransmission Output

Analog / Digital Protection Relays

Protection
Altech is pleased to offer a variety of protection relays covering:

  • Phase Monitoring

  • Voltage Monitoring

  • Current Monitoring

  • Frequency Monitoring

Current Leakage / Ground Fault Monitoring Protection relays help to maintain systems and ensure that proper action is taken when a fault is detected. Such functions help to preserve productivity and operational effectiveness of integral components.

Specifications

Part Number PIC152N-B-2-CU
Supply Voltage 85-270V AC/DC
LED Indication LED 1: Alarm On
Process Contollers - Input Voltage 85-270V AC/DC (50/60Hz)
Input Measurement Thermocouple (J,K,T,R,S) RTD (Pt100) DC Analog Inputs (-5 to 56mV, 0 to 10V, 0/4 to 20mA)
Main Output SPDT- 5A @ 250V AC/ 24V DC, resistive
Power Consumption 6VA max @230V AC
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 75°C (-4 to 167°F)
Humidity (Non-Condensing) 95% Relative Humidity
Weight 240 grams (.52lbs)
Display Type 7 Segment LED Display
Digits 1 row of 4 digits
Resolution 1/0.1 Degree for TC/RTD only. Decimal point position selectable 1/0.1/0.01/0.001 for analog input
Alarm Mode High Alarm / Low Alarm / Ban / Fail output / Fault Diagnosis
Temperature Unit °C / °F 0.1-99.9°
J, K,T / TC INPUTS* .25% of Full Scale ±1°
R, S INPUTS* 0.5% of Full Scale ±2°
RTD INPUT 0.1% of Full Scale ±1°
Auxiliary Output Retransmission (Optional) 4 to 20mA DC, 0-10V DC
Annunciator Programmable
ANALOG INPUT +/-.5% of Full Scale, +/- 1 digit
Rest Auto or Latched
