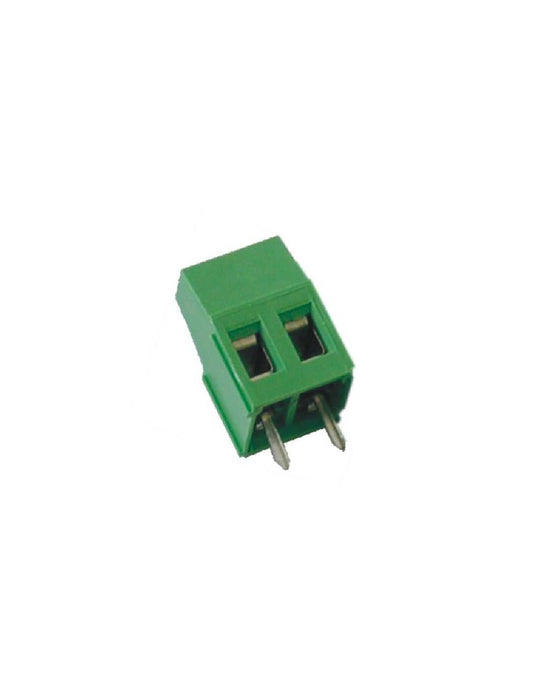

PCB Term Blk, 5.08mm, 20 Pole, Front wire, green

16A, 300V, 14-30AWG, 16.0mm height, modular

Specifications

Part Number MV-2520
Color Green
PCB Type Fixed
Pin Spacing 5.08mm
Connection Type Cage Clamp
Series MV25
Poles 20
Min Wire Size AWG 30
Max Wire size stranded AWG 14
Max Wire size solid AWG 14
Min Wire size sqmm 0.25
Max Wire size stranded sqmm 2.50
Max Wire size solid sqmm 4.00
Current Rating UL 16A
Voltage Rating UL 300V
Current Rating IEC 16A
Voltage Rating IEC 450V
Height 16.00mm
Length 101.60mm
Number Rows 1
Mounting Vertical
Wire Entry 0°
PCB Layout Linear Center
Solder Pin Length 4.70mm
PCB Hole Size 1.30mm
Mounting Type Wave soldering
Marking NA
Packaging Carboard Box
Weight (kg) 0.023100
Country of Origin Italy
Tariff Code 8536.69.4040
Standard Pack 50
