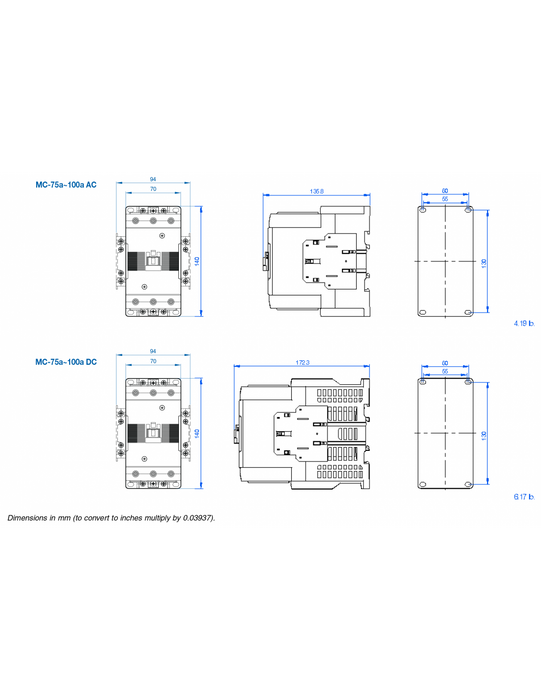

Altech MC-100A-DC12V MC Series Contactors - 3 Pole 100AF Frame DC

Altech MC-100A-DC12V MC Series Contactors - 3 Pole 100AF Frame DC

SKU MC-100A-DC12V
by Altech
$500.12 - $500.12
$500.12
$500.12 - $500.12
$500.12
Availability:
In stock

MC-100A-DC12V MC Series Contactors - 100AF Frame

Standards and Certifications

  • UL508
  • IEC 60947-2 &60947-2
  • CSA C22.2 No. 14

Features

  • 8 Frame sizes
  • 1/2 HP up to 600HP m@ 480V AC
  • Screw terminals (Lug Terminals Available)
  • Optional accessories
    • Additional Auxiliary contacts
    • Replacement Coils
    • Reversing Wiring Adapters for MMS
    • Coil Surge Suppressors

General Specifications

Maximum Voltage 600V AC
Rated Frequency 50/60Hz
Operating Temperature -5°C (23°F) to +40°C (104°F)
Degree of protection IP20
Resistance to Vibration (5-300Hz) > 15g
Flame resistance According to UL94

Specifications

Part Number MC-100A-DC12V
Contactor Coil Voltage 12V
Contactor Number of Poles 3
Contactor NEMA Size 3
Contactor Standard Auxiliaries 2NO/2NC
Contactor Frequency NA
Contactor HP Rating Continuous Current 160A
MC Contactor Single Phase (110-120) 10
MC Contactor Single Phase (220-240) 20
MC Contactor Three Phase (200-208V) 30
MC Contactor Three phase (220-240) 40
MC Contactors Three phase (440-480) 75
MC Contactor Three Phase (550-600) 75
MC Contactor Type MC-100A

Documents

No additional information at this time.
