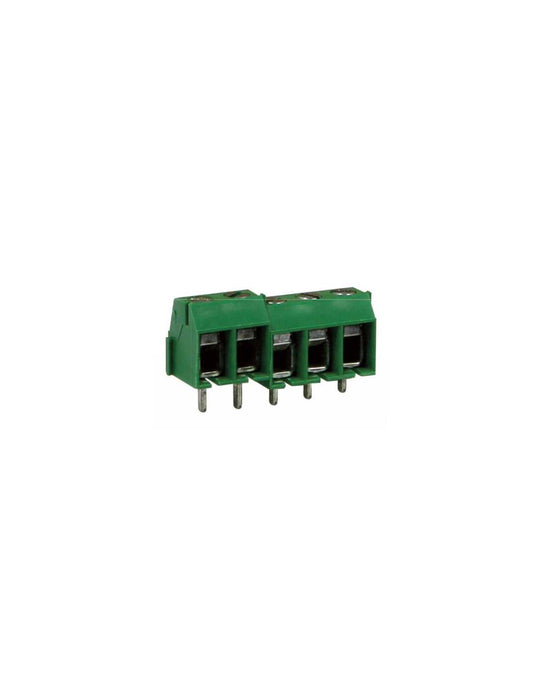

PCB Term Blk, 5.00mm, 5 Pole, Front wire, green

20A, 300V, 14-30AWG, 10.2mm height, no dovetail

Specifications

Part Number MBE155-5-V-L
Color Green
PCB Type Fixed
Pin Spacing 5.00mm
Connection Type Box Clamp WP
Series MBE15
Poles 5
Min Wire Size AWG 30
Max Wire size stranded AWG 14
Max Wire size solid AWG 14
Min Wire size sqmm 0.25
Max Wire size stranded sqmm 2.50
Max Wire size solid sqmm 2.50
Current Rating UL 20A
Voltage Rating UL 300V
Current Rating IEC 24A
Voltage Rating IEC 450V
Height 10.20mm
Length 25.00mm
Number Rows 1
Mounting Vertical
Wire Entry 0°
PCB Layout Linear Center
Solder Pin Length 4.30mm
PCB Hole Size 1.50mm
Mounting Type Wave soldering
Marking NA
Packaging Carboard Box
Weight (kg) 0.004387
Country of Origin Italy
Tariff Code 8536.69.4040
Standard Pack 100
