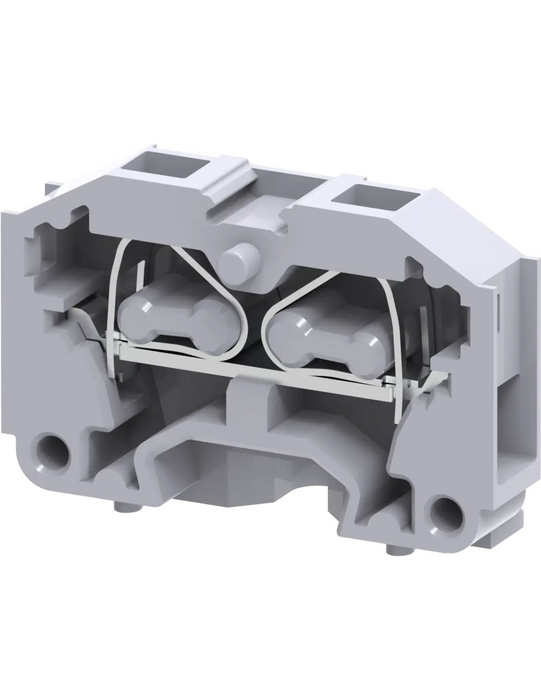

DIN Terminal Block, Spring Clamp Technology
Panel Mount Terminal Block, Side Wire Entry
Accessories
Standard Features
  • 6 mm width
  • Color: Grey
  • Wire size: 22-12 AWG
  • Voltage Rating: 300 V (UL), 800V AC/DC (IEC)
  • Current Rating: 20 A (UL), 24 A (IEC)

Specifications

Part Number CM2.5S
Type Feed-Thru
Termination Spring
Current UL 20A
Voltage UL 300V
Current IEC 24A
Voltage IEC 800V
Wire Range AWG 22-12 AWG
Wire Range mm2 0.2-2.5mm2
Color Grey
Standard Pack 100
