CBCT - 35-1 - Closed Toroid for Current Leakage Protection


Features

• Compact

• Reliable and Accurate

• Flexible Design

Analog / Digital Protection Relays

Protection
Altech is pleased to offer a variety of protection relays covering:

  • Phase Monitoring

  • Voltage Monitoring

  • Current Monitoring

  • Frequency Monitoring

Current Leakage / Ground Fault Monitoring Protection relays help to maintain systems and ensure that proper action is taken when a fault is detected. Such functions help to preserve productivity and operational effectiveness of integral components.

Specifications

Part Number CBCT-35-1
Operating Temperature 0 to 55°C (32 to 131°F)
Storage Temperature -20 to 75°C (-4 to 167°F)
Humidity (Non-Condensing) 95% Relative Humidity
Current Transformer Type Closed Toroid
Turns Ratio 1000:01:00
Rated Current 30A

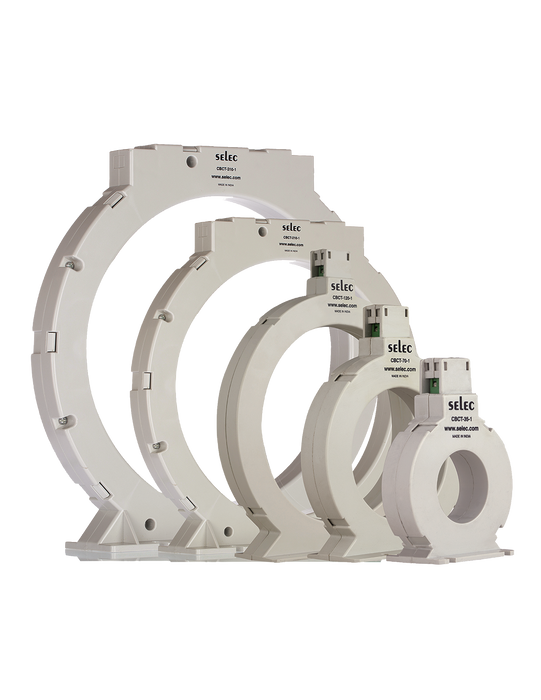

CBCT-35-1 2.5mm
CBCT-70-1 2.5mm
CBCT-120-1 2.5mm
CBCT-210-1 2.5mm
CBCT-310-1 2.5mm
Wire Size (max) 0.2-1.5mm² (AWG: 24-14)
Screw Tightening Torque 0.5 N-M

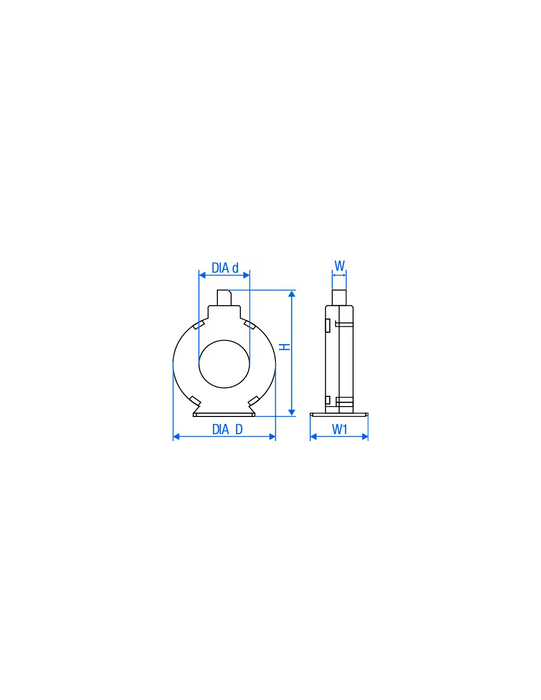

Inner Diameter 35mm

No additional information at this time.
