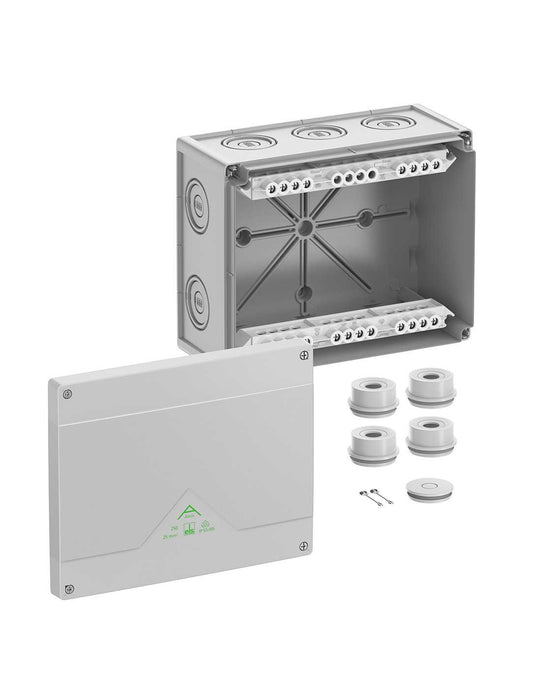

Altech 825-420-01 Abox 250 - , Polypropylene Gray Enclosure, 5 Pole High-set Terminal

Altech 825-420-01 Abox 250 - , Polypropylene Gray Enclosure, 5 Pole High-set Terminal

SKU 825-420-01
by Altech
$89.85 - $89.85
$89.85
$89.85 - $89.85
$89.85
Availability:
In stock

Abox 250, Enclosure, Polypropylene, Gray, 5 Pole High-set Terminal

Standard Features

  • Protection Level: IP55* / IP66**
  • Technical: Knockout Sidewalls (M20/M25/M40/M50)
  • UL Recognized Enclosure Material: Polypropylene
  • Gasket Material: Thermoplastic Elastomer
  • Color: Light Gray
  • Material Operating Temperature Range: Polypropylene -25˚C to 55˚C (-13˚F to 131˚F)
  • Included Accessories:
    (4) M40 Entry Spouts for Cables 17-30mm
    (1) M40 Sealing Plug
    (1) Cover Retainer

* With Supplied Entry Spouts
**As Equipped or With Optional IP66 Cable Glands

Specifications

Part Number 825-420-01
Length (in) 9.92
Width (in) 7.95
Depth (in) 4.72
Length (mm) 252
Width (mm) 202
Depth (mm) 120
Material Polypropylene
IP Protection IP55* / IP66**
Outdoor Use NO
UL approval NO
NEMA 4X NO
Series Abox
Cover Color Light Gray
Sidewalls Metric knockouts

Documents

No additional information at this time.
