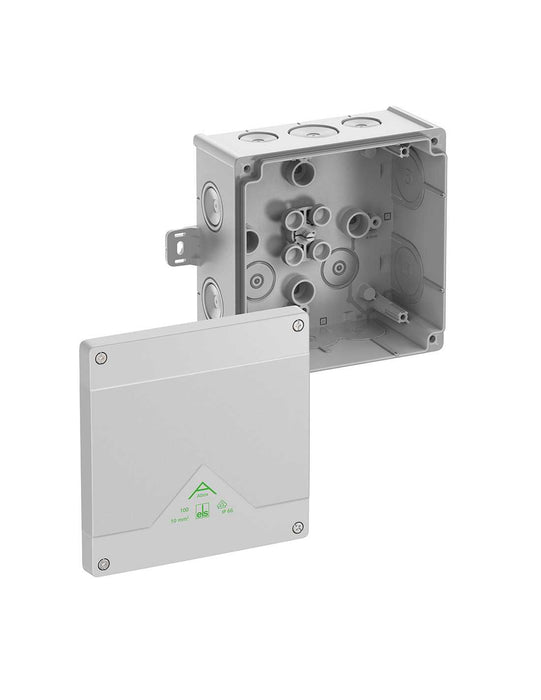

Abox 100AB, Polypropylene, Gray, Empty, Enclosure

Standard Features

  • Protection Level: IP66
  • Technical: Self Sealing Soft Elastic Membranes
    Suitable for Metric Entry
    Integral Mounting Tabs
  • Sealing Area: M20/M25/M32 - 8 to 28mm
  • UL Recognized Enclosure Material: Polypropylene
  • Gasket Material: Thermoplastic Elastomer
  • Color: Light Gray or White
  • Material Operating Temperature Range: Polypropylene -25˚C to 55˚C (-13˚F to 131˚F)

Specifications

Part Number 810-401-01
Length (in) 5.98
Width (in) 5.98
Depth (in) 3.15
Length (mm) 152
Width (mm) 152
Depth (mm) 80
Material Polypropylene
IP Protection IP66
Outdoor Use NO
UL approval NO
NEMA 4X NO
Series Abox
Cover Color Gray
Sidewalls Metric knockouts
