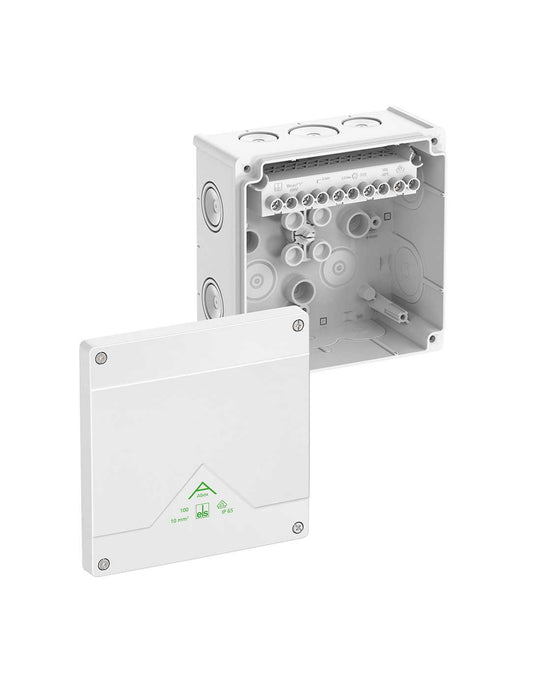

Altech 810-120-01 Abox 100 - , Polypropylene White Enclosure, 5 Pole High-set Terminal

Altech 810-120-01 Abox 100 - , Polypropylene White Enclosure, 5 Pole High-set Terminal

SKU 810-120-01
by Altech
$48.54 - $48.54
$48.54
$48.54 - $48.54
$48.54
Availability:
In stock

Abox 100, Polypropylene, White, 5 Pole High-set Terminal, Enclosure

Standard Features

  • Protection Level: IP66
  • Technical: Self Sealing Soft Elastic Membranes
    Suitable for Metric Entry
  • Sealing Area: M20/M25/M32 - 8 to 28mm
  • UL Recognized Enclosure Material: Polypropylene
  • Gasket Material: Thermoplastic Elastomer
  • Color: Light Gray or White
  • Material Operating Temperature Range: Polypropylene -25˚C to 55˚C (-13˚F to 131˚F)

Specifications

Part Number 810-120-01
Length (in) 5.98
Width (in) 5.98
Depth (in) 3.15
Length (mm) 152
Width (mm) 152
Depth (mm) 80
Material Polypropylene
IP Protection IP66
Outdoor Use NO
UL approval NO
NEMA 4X NO
Series Abox
Cover Color White
Sidewalls Metric knockouts
