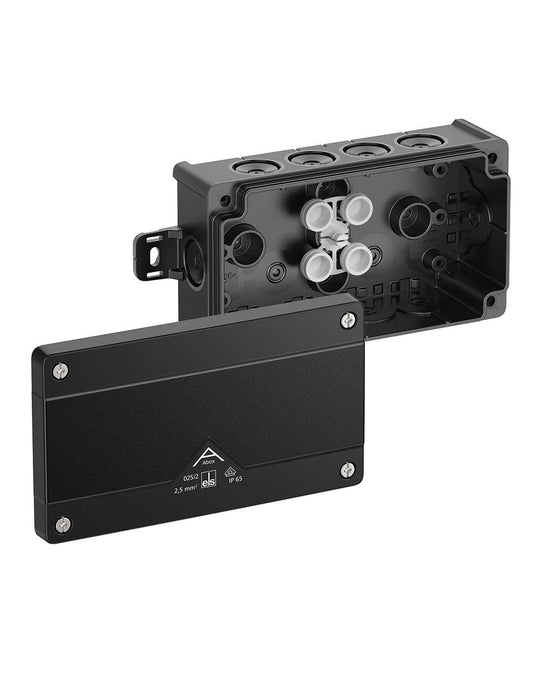

Abox 025/2AB, Enclosure, Polypropylene, Black, Empty, 5 Pole Terminal, Metric Cable Entries, Mounting Tabs

Standard Features

  • Protection Level: IP66
  • Technical: Self Sealing Soft Elastic Membranes
    Suitable for Metric Entry
    Integral Mounting Tabs
  • Sealing Area: M20 - 4 to 16mm
  • UL Recognized Enclosure Material: Polypropylene
  • Gasket Material: Thermoplastic Elastomer
  • Color: Light Gray, White or Black
  • Material Operating Temperature Range: Polypropylene -25˚C to 55˚C (-13˚F to 131˚F)

Specifications

Part Number 802-003-01
Length (in) 5.98
Width (in) 3.43
Depth (in) 2.05
Length (mm) 152
Width (mm) 87
Depth (mm) 52
Material Polypropylene
IP Protection IP66
Outdoor Use NO
UL approval NO
NEMA 4X NO
Series Abox
Cover Color Black
Sidewalls Metric cable entries
