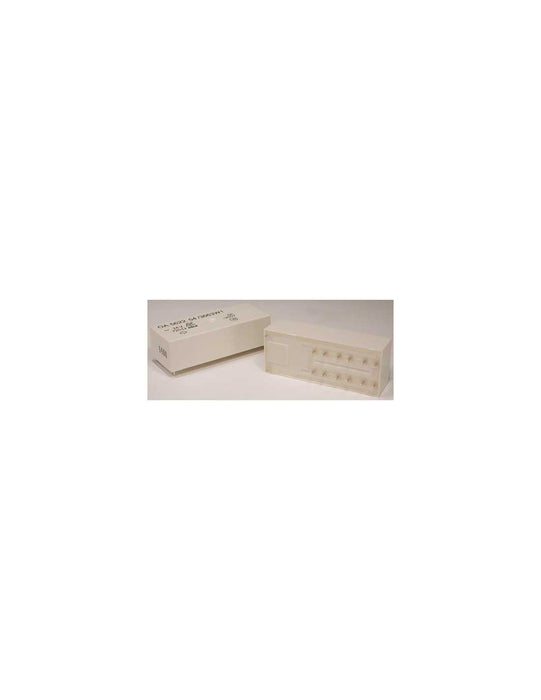

Altech 56.OA22.2442N Safety Relay : OA 5622 , OA 5622S : 8A : 24V : 4 NO - 2 NC

Altech 56.OA22.2442N Safety Relay : OA 5622 , OA 5622S : 8A : 24V : 4 NO - 2 NC

SKU 56.OA22.2442N
by Altech
$70.11 - $70.11
$70.11
$70.11 - $70.11
$70.11
Availability:
In stock

56.OA22.2442N - Safety Relay : OA 5622 : 8A : 24V : 4 NO/2 NC

*For S-Type please specify S when ordering*

Example: 56.OA22S._ _ _ _ ◻

Specifications

Part Number 56.OA22.2442N
Current Rating 8A
Rated Voltage 24V
Contact Arrangement 4 NO - 2 NC
Voltage Range 18.0- 33.6V
Protection Rating RTIII wash proof
Type S - Type
Series OA 5622
Output Contacts 6
International Approvals TUV
Force-guided Contacts All gold flash plated
Coil Resistance (10%) 720Ω
Contact Material AgNi10+0.2μmAu
Standard Pack 20
