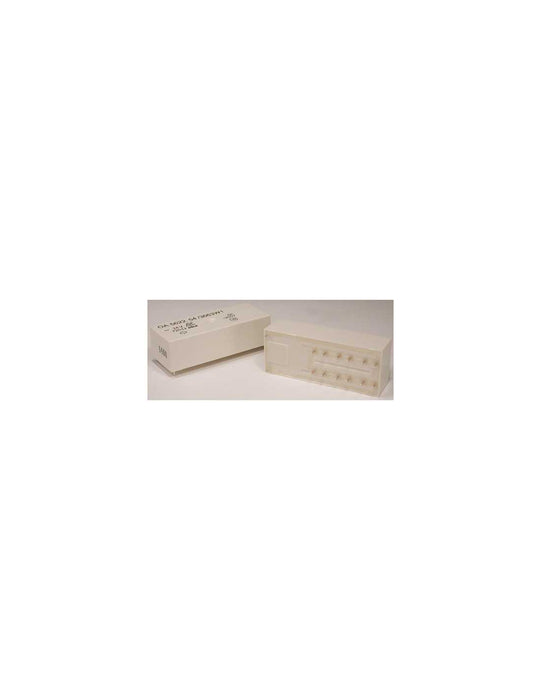

Altech 56.OA22.1233C Safety Relay : OA 5622 , OA 5622S : 8A : 12V : 3 NO - 3 NC

Altech 56.OA22.1233C Safety Relay : OA 5622 , OA 5622S : 8A : 12V : 3 NO - 3 NC

SKU 56.OA22.1233C
by Altech
$70.11 - $70.11
$70.11
$70.11 - $70.11
$70.11
Availability:
In stock

56.OA22.1233C - Safety Relay : OA 5622 : 8A : 12V : 3 NO/3 NC

*For S-Type please specify S when ordering*

Example: 56.OA22S._ _ _ _ ◻

Specifications

Part Number 56.OA22.1233C
Current Rating 8A
Rated Voltage 12V
Contact Arrangement 3 NO - 3 NC
Voltage Range 9.0- 16.8V
Protection Rating RTIII wash proof
Type S - Type
Series OA 5622
Output Contacts 6
International Approvals TUV
Force-guided Contacts All gold flash plated
Coil Resistance (10%) 180Ω
Contact Material AgSnO₂+0.2μmAu
Standard Pack 20
