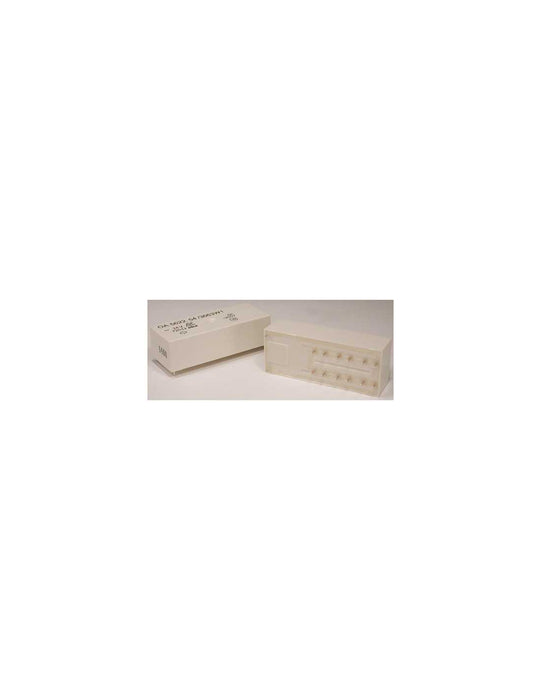

Altech 56.OA22.1142N Safety Relay : OA 5622 , OA 5622S : 8A : 110V : 4 NO - 2 NC

Altech 56.OA22.1142N Safety Relay : OA 5622 , OA 5622S : 8A : 110V : 4 NO - 2 NC

SKU 56.OA22.1142N
by Altech
$76.12 - $76.12
$76.12
$76.12 - $76.12
$76.12
Availability:
In stock

56.OA22.1142N - Safety Relay : OA 5622 : 8A : 110V : 4 NO/2 NC

*For S-Type please specify S when ordering*

Example: 56.OA22S._ _ _ _ ◻

Specifications

Part Number 56.OA22.1142N
Current Rating 8A
Rated Voltage 110V
Contact Arrangement 4 NO - 2 NC
Voltage Range 82.5- 154.0V
Protection Rating RTIII wash proof
Type S - Type
Series OA 5622
Output Contacts 6
International Approvals TUV
Force-guided Contacts All gold flash plated
Coil Resistance (10%) 15125Ω
Contact Material AgNi10+0.2μmAu
Standard Pack 20
