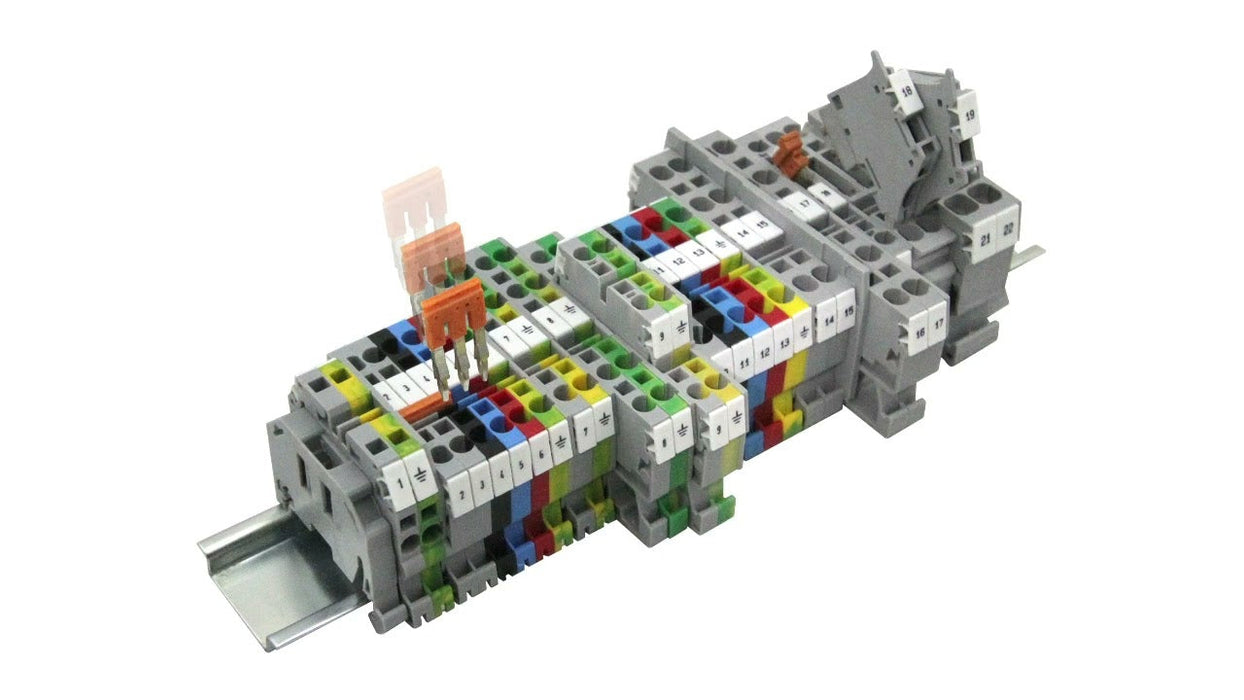

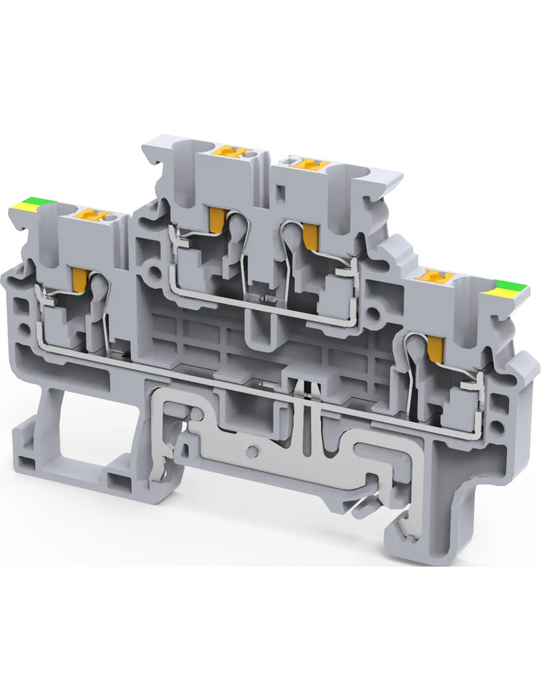

DIN Terminal Block, Push-In Technology

Top Level Feed-Through, Bottom Level Grounding Circuit

Standard Features

  • Current rating: 20 A (Top Level)
  • Voltage rating: 600V (UL), 1000V AC/DC (IEC)
  • Wire size: 24-12 AWG
  • 5mm width
  • Color: Grey, Yellow/Green

Specifications

Part Number CPDLG2.5
Type Double Level
No. Connections 4
Termination Push-In
Current UL 20A
Voltage UL 600V
Current IEC 24A
Voltage IEC 1000V AC/DC
Wire Range AWG 24-12 AWG
Wire Range mm2 0.2-2.5mm2
Color Grey
Color 2 yellow/ green
Standard Pack 50

Documents

No additional information at this time.
