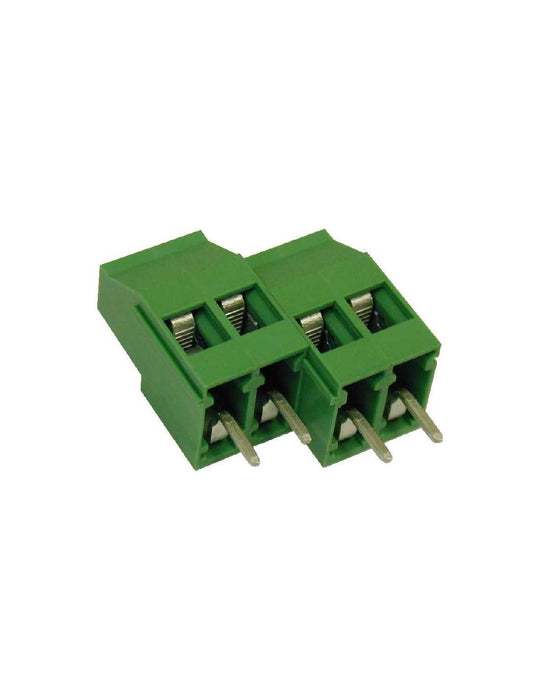

Altech MVST2512-5,08-V PCB Terminal Block, 5.08mm, 12 Pole, Front Wire, Green

Altech MVST2512-5,08-V PCB Terminal Block, 5.08mm, 12 Pole, Front Wire, Green

SKU MVST2512-5,08-V
by Altech
$5.26 - $5.26
$5.26
$5.26 - $5.26
$5.26
Availability:
In stock

PCB Term Blk, 5.08mm, 12 Pole, Front wire, green

20A, 300V, 12-24AWG, 18.0mm height, modular

Specifications

Part Number MVST2512-5,08-V
Color Green
PCB Type Fixed
Pin Spacing 5.08mm
Connection Type Cage Clamp
Series MVST25
Poles 12
Min Wire Size AWG 24
Max Wire size stranded AWG 12
Max Wire size solid AWG 12
Min Wire size sqmm 0.25
Max Wire size stranded sqmm 2.50
Max Wire size solid sqmm 4.00
Current Rating UL 20A
Voltage Rating UL 300V
Current Rating IEC 24A
Voltage Rating IEC 250V
Height 18.00mm
Length 60.96mm
Number Rows 1
Mounting Vertical
Wire Entry 0°
PCB Layout Linear Center
Solder Pin Length 5.00mm
PCB Hole Size 1.50mm
Mounting Type Wave soldering
Marking NA
Packaging Carboard Box
Weight (kg) 0.018504
Country of Origin Italy
Tariff Code 8536.69.4040
Standard Pack 100
