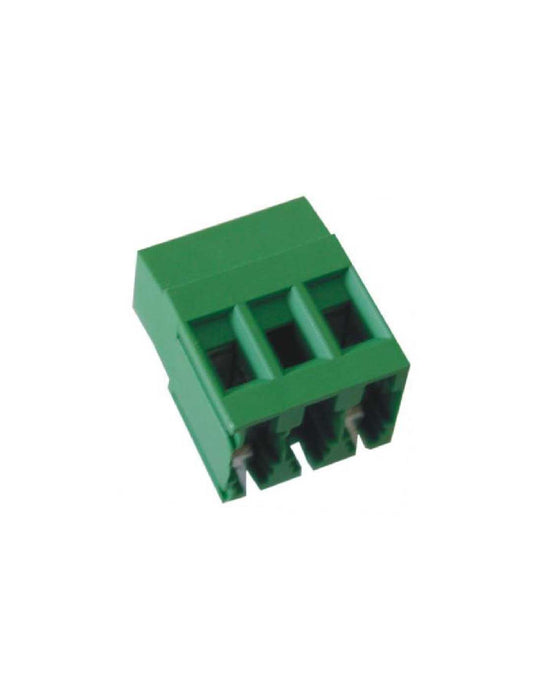

Altech MVSP253-10,16-H PCB Terminal Block, 10.16mm, 3 Pole, Top Wire, Green

Altech MVSP253-10,16-H PCB Terminal Block, 10.16mm, 3 Pole, Top Wire, Green

SKU MVSP253-10,16-H
by Altech
$1.61 - $1.61
$1.61
$1.61 - $1.61
$1.61
Availability:
In stock

PCB Term Blk, 10.16mm, 3 Pole, Top wire, green

18A, 600V, 14-30AWG, 12.5mm height, modular

Specifications

Part Number MVSP253-10,16-H
Color Green
PCB Type Fixed
Pin Spacing 10.16mm
Connection Type Cage Clamp
Series MVSP25
Poles 3
Min Wire Size AWG 30
Max Wire size stranded AWG 14
Max Wire size solid AWG 14
Min Wire size sqmm 0.25
Max Wire size stranded sqmm 2.50
Max Wire size solid sqmm 4.00
Current Rating UL 18A
Voltage Rating UL 600V
Current Rating IEC 24A
Voltage Rating IEC 750V
Height 12.50mm
Length 25.40mm
Number Rows 1
Mounting horizontal
Wire Entry 90°
PCB Layout Linear
Solder Pin Length 4.00mm
PCB Hole Size 1.50mm
Mounting Type Wave soldering
Marking NA
Packaging Carboard Box
Country of Origin Italy
Tariff Code 8536.69.4040
Standard Pack 100
