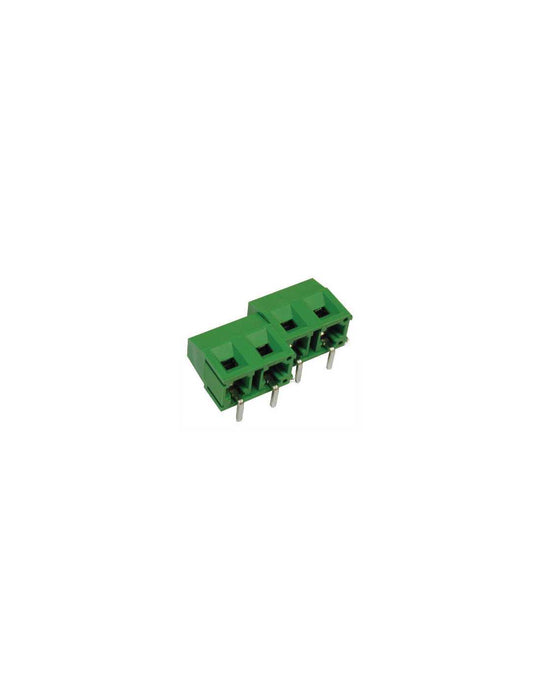

PCB Term Blk, 7.50mm, 7 Pole, Top wire, green

17.5A, 300V, 16-30AWG, 8.9mm height, modular

Specifications

Part Number MVS177-7,5-H
Color Green
PCB Type Fixed
Pin Spacing 7.50mm
Connection Type Cage Clamp
Series MVS17
Poles 7
Min Wire Size AWG 30
Max Wire size stranded AWG 16
Max Wire size solid AWG 16
Min Wire size sqmm 0.25
Max Wire size stranded sqmm 1.50
Max Wire size solid sqmm 2.50
Current Rating UL 17.5A
Voltage Rating UL 300V
Current Rating IEC 17.5A
Voltage Rating IEC 750V
Height 8.90mm
Length 52.50mm
Number Rows 1
Mounting horizontal
Wire Entry 90°
PCB Layout Linear
Solder Pin Length 3.85mm
PCB Hole Size 1.50mm
Mounting Type Wave soldering
Marking NA
Packaging Carboard Box
Country of Origin Italy
Tariff Code 8536.69.4040
Standard Pack 100
