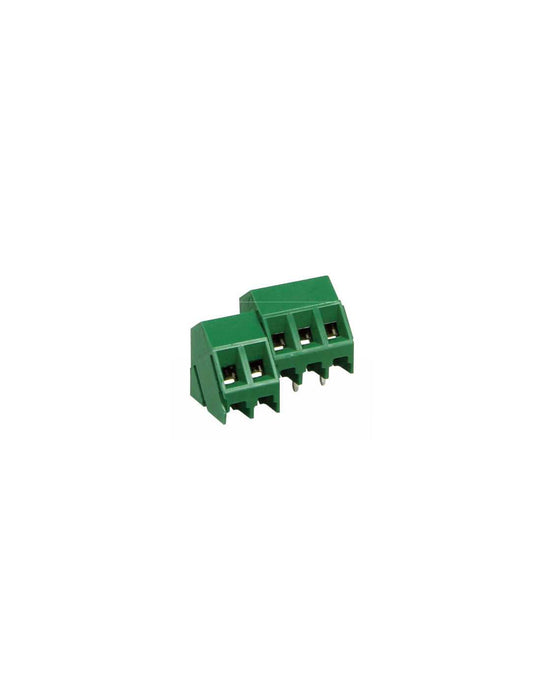

PCB Term Blk, 5.00mm, 22 Pole, 35°, green

17.5A, 300V, 16-30AWG, 14.8mm height, modular

Specifications

Part Number MVS-1522 (35)
Color Green
PCB Type Fixed
Pin Spacing 5.00mm
Connection Type Cage Clamp
Series MVS15
Poles 22
Min Wire Size AWG 30
Max Wire size stranded AWG 16
Max Wire size solid AWG 16
Min Wire size sqmm 0.25
Max Wire size stranded sqmm 1.50
Max Wire size solid sqmm 2.50
Current Rating UL 17.5A
Voltage Rating UL 300V
Current Rating IEC 17.5A
Voltage Rating IEC 450V
Height 14.80mm
Length 110.00mm
Number Rows 1
Mounting Angled
Wire Entry 35°
PCB Layout Linear Center
Solder Pin Length 4.00mm
PCB Hole Size 1.50mm
Mounting Type Wave soldering
Marking NA
Packaging Carboard Box
Weight (kg) 0.024486
Country of Origin Italy
Tariff Code 8536.69.4040
Standard Pack 50
