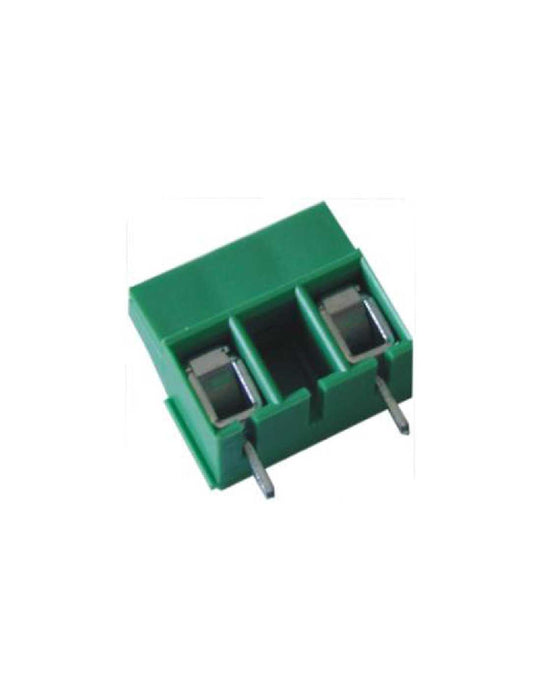

Altech MVES151-10,16-V PCB Terminal Block, 10.16mm, 1 Pole, Front Wire, Green

Altech MVES151-10,16-V PCB Terminal Block, 10.16mm, 1 Pole, Front Wire, Green

SKU MVES151-10,16-V
by Altech
$0.30 - $0.30
$0.30
$0.30 - $0.30
$0.30
Availability:
In stock

PCB Term Blk, 10.16mm, 1 Pole, Front wire, green

use to assemble MVES15xx-10,16-V, 2 pole/ 1 pin

Specifications

Part Number MVES151-10,16-V
Color Green
PCB Type Fixed
Pin Spacing 10.16mm
Connection Type Box Clamp WP
Series MVES15
Poles 1
Min Wire Size AWG 30
Max Wire size stranded AWG 14
Max Wire size solid AWG 14
Min Wire size sqmm 0.25
Max Wire size stranded sqmm 1.50
Max Wire size solid sqmm 2.50
Current Rating UL 20A
Voltage Rating UL 600V
Current Rating IEC 17.5A
Voltage Rating IEC 750V
Height 13.50mm
Length 5.08mm
Number Rows 1
Mounting Vertical
Wire Entry 0°
PCB Layout Linear Center
Solder Pin Length 4.00mm
PCB Hole Size 1.50mm
Mounting Type Wave soldering
Marking NA
Packaging Carboard Box
Weight (kg) 0.001486
Country of Origin Italy
Tariff Code 8536.69.4040
Standard Pack 100
