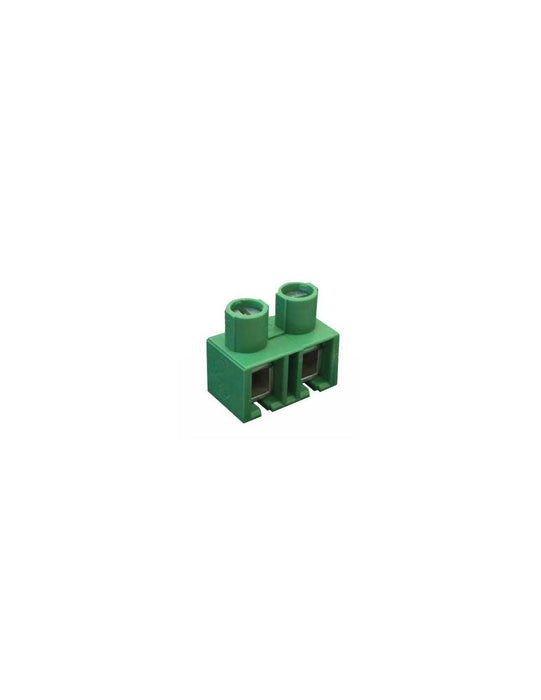

Altech MVE2612-7,5-V-L PCB Terminal Block, 7.50mm, 12 Pole, Front Wire, Green

Altech MVE2612-7,5-V-L PCB Terminal Block, 7.50mm, 12 Pole, Front Wire, Green

SKU MVE2612-7,5-V-L
by Altech
$3.33 - $3.33
$3.33
$3.33 - $3.33
$3.33
Availability:
In stock

PCB Term Blk, 7.50mm, 12 Pole, Front wire, green

26A, 300V, 12-30AWG, 12.8mm height, no dovetail

Specifications

Part Number MVE2612-7,5-V-L
Color Green
PCB Type Fixed
Pin Spacing 7.50mm
Connection Type Box Clamp WP
Series MVE26
Poles 12
Min Wire Size AWG 30
Max Wire size stranded AWG 12
Max Wire size solid AWG 12
Min Wire size sqmm 0.25
Max Wire size stranded sqmm 2.50
Max Wire size solid sqmm 4.00
Current Rating UL 26A
Voltage Rating UL 300V
Current Rating IEC 24A
Voltage Rating IEC 750V
Height 12.80mm
Length 90.00mm
Number Rows 1
Mounting Vertical
Wire Entry 0°
PCB Layout Linear Center
Solder Pin Length 4.00mm
PCB Hole Size 1.50mm
Mounting Type Wave soldering
Marking NA
Packaging Carboard Box
Country of Origin Italy
Tariff Code 8536.69.4040
Standard Pack 100
