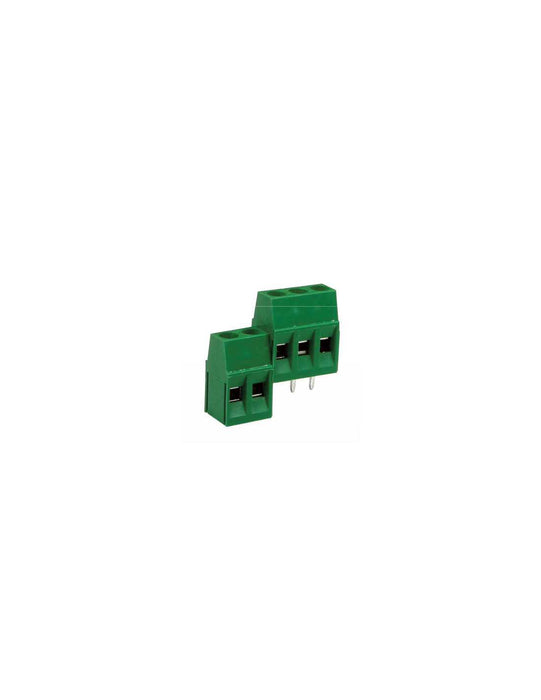

PCB Term Blk, 5.00mm, 6 Pole, Front wire, green

16A, 300V, 14-30AWG, 16.8mm height, modular

Specifications

Part Number MVE-256
Color Green
PCB Type Fixed
Pin Spacing 5.00mm
Connection Type Cage Clamp
Series MVE25
Poles 6
Min Wire Size AWG 30
Max Wire size stranded AWG 14
Max Wire size solid AWG 14
Min Wire size sqmm 0.25
Max Wire size stranded sqmm 2.50
Max Wire size solid sqmm 4.00
Current Rating UL 16.0A
Voltage Rating UL 300V
Current Rating IEC 16A
Voltage Rating IEC 450V
Height 16.80mm
Length 30.00mm
Number Rows 1
Mounting Vertical
Wire Entry 0°
PCB Layout Linear Center
Solder Pin Length 4.50mm
PCB Hole Size 1.50mm
Mounting Type Wave soldering
Marking NA
Packaging Carboard Box
Weight (kg) 0.009343
Country of Origin Italy
Tariff Code 8536.69.4040
Standard Pack 100

Documents

No additional information at this time.
