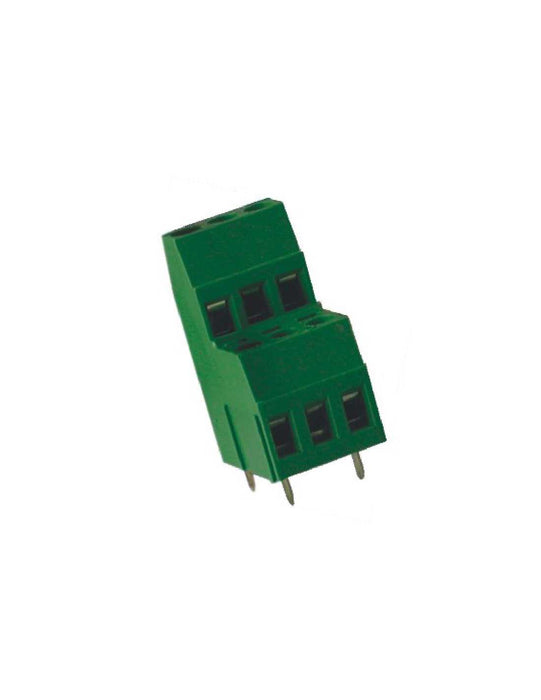

Altech MVDKB-2511 PCB Terminal Block, 10.16mm, 22Pole, Double Level, Green

Altech MVDKB-2511 PCB Terminal Block, 10.16mm, 22Pole, Double Level, Green

SKU MVDKB-2511
by Altech
$12.20 - $12.20
$12.20
$12.20 - $12.20
$12.20
Availability:
In stock

PCB Term Blk, 10.16mm, 22 Pole, Dbl Level, green

16A, 300V, 14-30AWG, 29.5mm height, no offset

Specifications

Part Number MVDKB-2511
Color Green
PCB Type Fixed
Pin Spacing 10.16mm
Connection Type Cage Clamp
Series MVDK25
Poles 22
Min Wire Size AWG 30
Max Wire size stranded AWG 14
Max Wire size solid AWG 14
Min Wire size sqmm 0.25
Max Wire size stranded sqmm 2.50
Max Wire size solid sqmm 4.00
Current Rating UL 16A
Voltage Rating UL 300V
Current Rating IEC 16A
Voltage Rating IEC 750V
Height 29.50mm
Length 106.68mm
Number Rows 2
Mounting Vertical
Wire Entry 0°
PCB Layout Linear, Double Row
Solder Pin Length 4.30mm
PCB Hole Size 1.30mm
Mounting Type Wave soldering
Marking NA
Packaging Carboard Box
Country of Origin Italy
Tariff Code 8536.69.4040
Standard Pack 50
