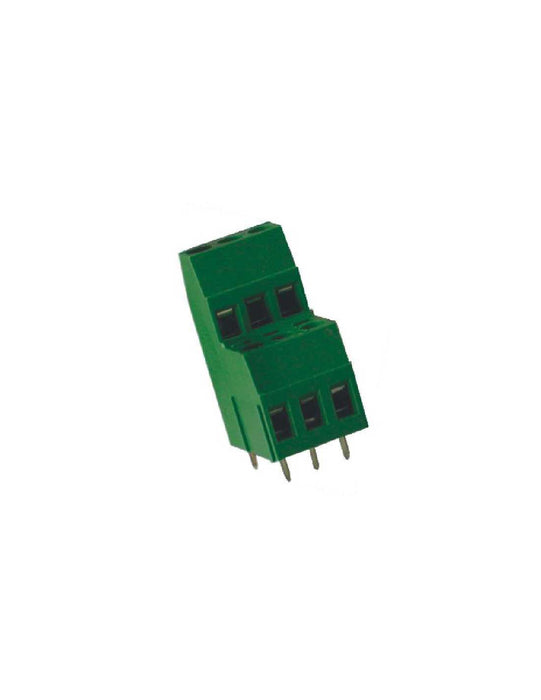

PCB Term Blk, 5.08mm, 24 Pole, Dbl Level, green

16A, 300V, 14-30AWG, 29.5mm height, no offset

Specifications

Part Number MVDK-2512
Color Green
PCB Type Fixed
Pin Spacing 5.08mm
Connection Type Cage Clamp
Series MVDK25
Poles 24
Min Wire Size AWG 30
Max Wire size stranded AWG 14
Max Wire size solid AWG 14
Min Wire size sqmm 0.25
Max Wire size stranded sqmm 2.50
Max Wire size solid sqmm 4.00
Current Rating UL 16A
Voltage Rating UL 300V
Current Rating IEC 16A
Voltage Rating IEC 450V
Height 29.50mm
Length 60.96mm
Number Rows 2
Mounting Vertical
Wire Entry 0°
PCB Layout Linear, Double Row
Solder Pin Length 4.30mm
PCB Hole Size 1.30mm
Mounting Type Wave soldering
Marking NA
Packaging Carboard Box
Weight (kg) 0.044400
Country of Origin Italy
Tariff Code 8536.69.4040
Standard Pack 100
