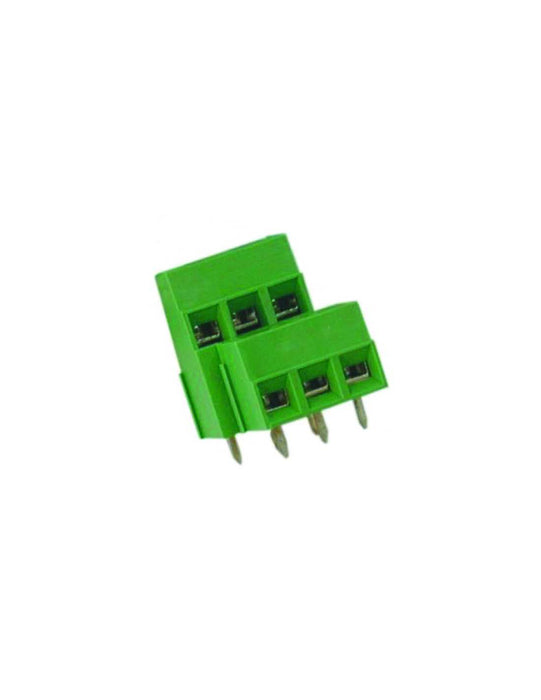

Altech MVD-157 (5,00) PCB Terminal Block, 5.00mm, 14 Pole, Double Level, Green

Altech MVD-157 (5,00) PCB Terminal Block, 5.00mm, 14 Pole, Double Level, Green

SKU MVD-157 (5,00)
by Altech
$5.62 - $5.62
$5.62
$5.62 - $5.62
$5.62
Availability:
In stock

PCB Term Blk, 5.00mm, 14 Pole, Dbl Level, green

13.5A, 300V, 16-30AWG, 19.5mm height, modular

Specifications

Part Number MVD-157 (5,00)
Color Green
PCB Type Fixed
Pin Spacing 5.00mm
Connection Type Cage Clamp
Series MVD15
Poles 14
Min Wire Size AWG 30
Max Wire size stranded AWG 16
Max Wire size solid AWG 16
Min Wire size sqmm 0.25
Max Wire size stranded sqmm 1.50
Max Wire size solid sqmm 1.50
Current Rating UL 13.5A
Voltage Rating UL 300V
Current Rating IEC 13.5A
Voltage Rating IEC 450V
Height 19.50mm
Length 35.00mm
Number Rows 2
Mounting Vertical
Wire Entry 0°
PCB Layout Zig-zag
Solder Pin Length 3.90mm
PCB Hole Size 1.30mm
Mounting Type Wave soldering
Marking NA
Packaging Carboard Box
Weight (kg) 0.013538
Country of Origin Italy
Tariff Code 8536.69.4040
Standard Pack 100
