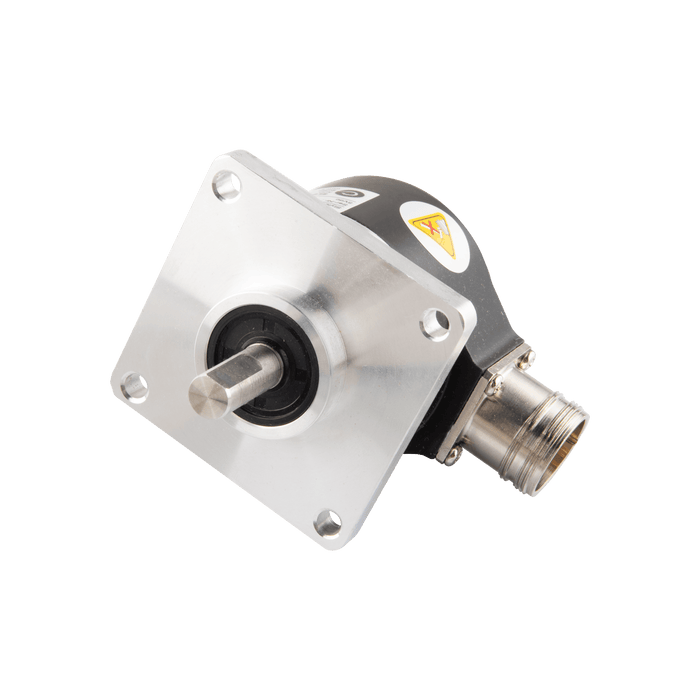

Shaft incremental encoder, EV58 Series, φ63.5 mm Square flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M23 12Pin, Resoluteion 1000

EV58D10-H6TR-1000

SKU EV58D10-H6TR-1000
by ELCO Industrial Automation

Shaft incremental encoder, EV58 Series, φ63.5 mm Square flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M23 12Pin, Resoluteion 1000

$204.54 - $204.54
$204.54
$204.54 - $204.54
$204.54
Availability:
In stock

Shaft incremental encoder, EV58 Series, φ63.5 mm Square flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M23 12Pin, Resoluteion 1000

Specifications

Connection type M23 12-pin Male
Model Incremental encoder
Housing material Al-alloy
Housing diameter 58 mm
IP rating IP65
Flange type Clamping flange
Shaft type Solid shaft
Shaft diameter 10 mm
Max load capacity of the shaft 60 N Axial120 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 1.9 x

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV58A_V1.0_EN.pdf
3D Drawing CAD_E_EV58D10-xxTR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
