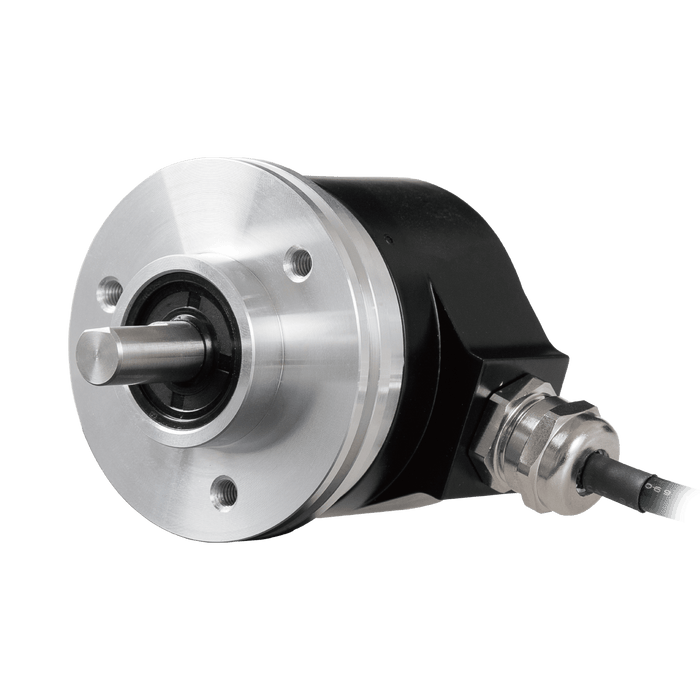

Shaft incremental encoder, EV58 Series, φ36 mm Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, Cable 1.5 m, Resoluteion 720

EV58C10-P6PR-720

SKU EV58C10-P6PR-720
by ELCO Industrial Automation

Shaft incremental encoder, EV58 Series, φ36 mm Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, Cable 1.5 m, Resoluteion 720

$157.16 - $157.16
$157.16
$157.16 - $157.16
$157.16
Availability:
In stock

Shaft incremental encoder, EV58 Series, φ36 mm Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, Cable 1.5 m, Resoluteion 720

Specifications

Model Incremental encoder
Shock resistance 50 g, 11 ms
Output logic Push-pull HTL without inverted signal
Permissible load(channel) ±30 mA
Pulse frequency 300 kHz
Housing diameter 58 mm
IP rating IP65
Housing material Al-alloy
Connection type Cable outlet
Cable length 1.5 m
Flange type Clamping

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV58A_V1.0_EN.pdf
3D Drawing CAD_E_EV58C10-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
