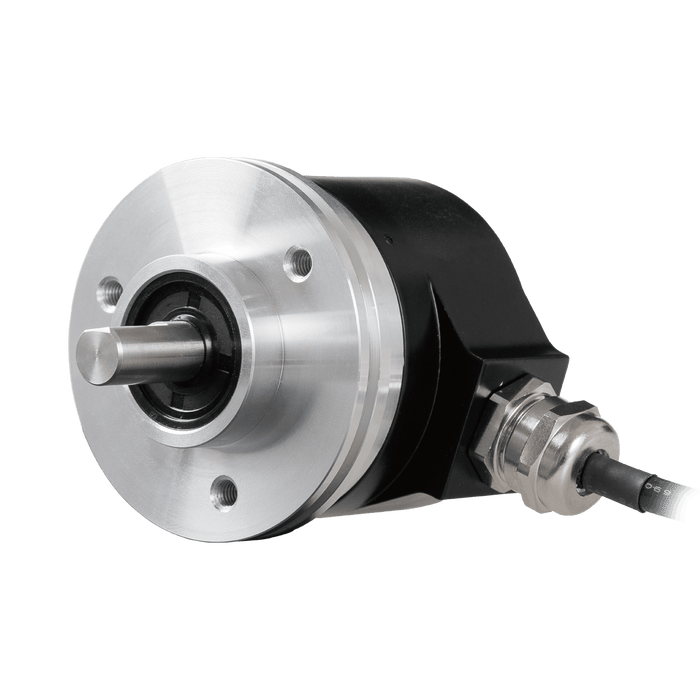

Shaft incremental encoder, EV58 Series, φ36 mm Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output TTL(with inverted signal), Radial, Cable 1.5 m, Resoluteion 1024

Specifications

Permissible load(channel) ±50 mA
Pulse frequency 300 kHz
Connection type Cable outlet
Cable length 1.5 m
Model Incremental encoder
Housing material Al-alloy
Housing diameter 58 mm
IP rating IP65
Flange type Clamping flange
Shaft type Solid shaft
Shaft diameter 10 mm

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV58A_V1.0_EN.pdf
3D Drawing CAD_E_EV58C10-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
