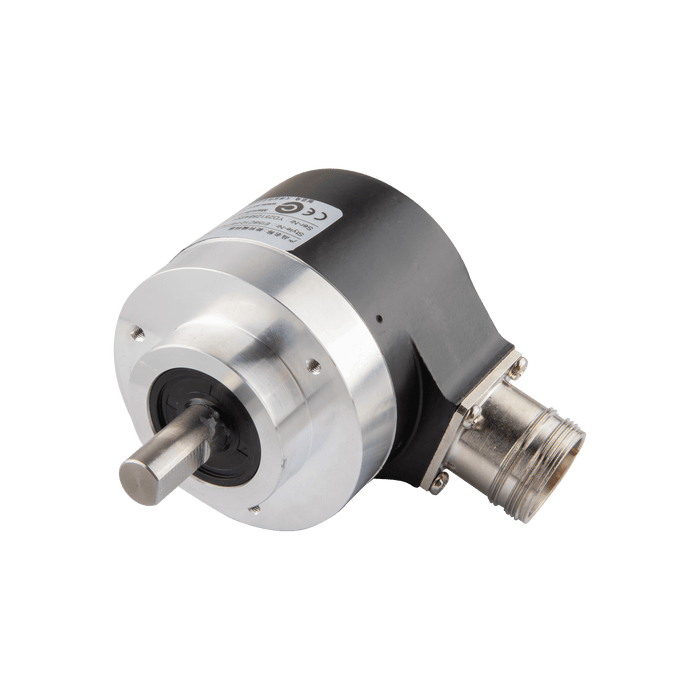

Shaft incremental encoder, EV58 Series, φ36 mm Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M23 12Pin, Resoluteion 2048

EV58C10-H6TR-2048

SKU EV58C10-H6TR-2048
by ELCO Industrial Automation

Shaft incremental encoder, EV58 Series, φ36 mm Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M23 12Pin, Resoluteion 2048

$213.90 - $213.90
$213.90
$213.90 - $213.90
$213.90
Availability:
In stock

Shaft incremental encoder, EV58 Series, φ36 mm Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M23 12Pin, Resoluteion 2048

Specifications

Max Speed(rpm) 6000 rpm
Starting torque ＜ 0.01 N·m
Shock resistance 50 g, 11 ms
Vibration resistance 10 g, 10 ... 2000 Hz
Relative humidity/condensation 90 % Condensation not permitted
Ambient temperature -20 ... +80 °C
Weight 400 g
Resolution 2048 ppr
Supply voltage 10 ... 30 V DC
Model Increment

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV58A_V1.0_EN.pdf
3D Drawing CAD_E_EV58C10-xxTR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
