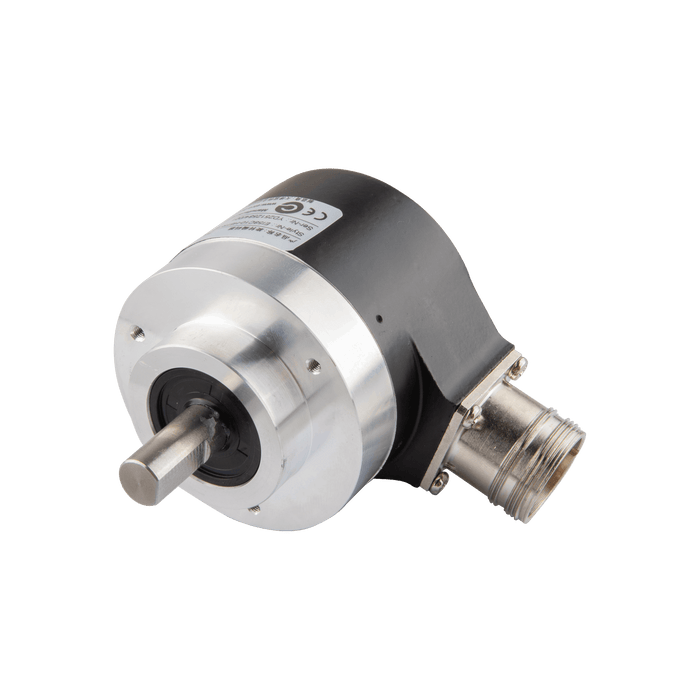

Shaft incremental encoder, EV58 Series, φ36 mm Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M23 12Pin, Resoluteion 1024

EV58C10-H6TR-1024

SKU EV58C10-H6TR-1024
by ELCO Industrial Automation

Shaft incremental encoder, EV58 Series, φ36 mm Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M23 12Pin, Resoluteion 1024

$193.06 - $193.06
$193.06
$193.06 - $193.06
$193.06
Availability:
In stock

Shaft incremental encoder, EV58 Series, φ36 mm Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M23 12Pin, Resoluteion 1024

Specifications

Flange type Clamping flange
Shaft diameter 10 mm
Max Speed(rpm) 6000 rpm
Shaft type Solid shaft
Weight 400 g
Max load capacity of the shaft 60 N Axial120 N Radial
Moment of inertia 1.9 x 10-6 kgm2
Resolution 1024 ppr
Shock resistance 50 g, 11 ms
Vibration resistance 10 g, 10 ... 2000 Hz

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV58A_V1.0_EN.pdf
3D Drawing CAD_E_EV58C10-xxTR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
