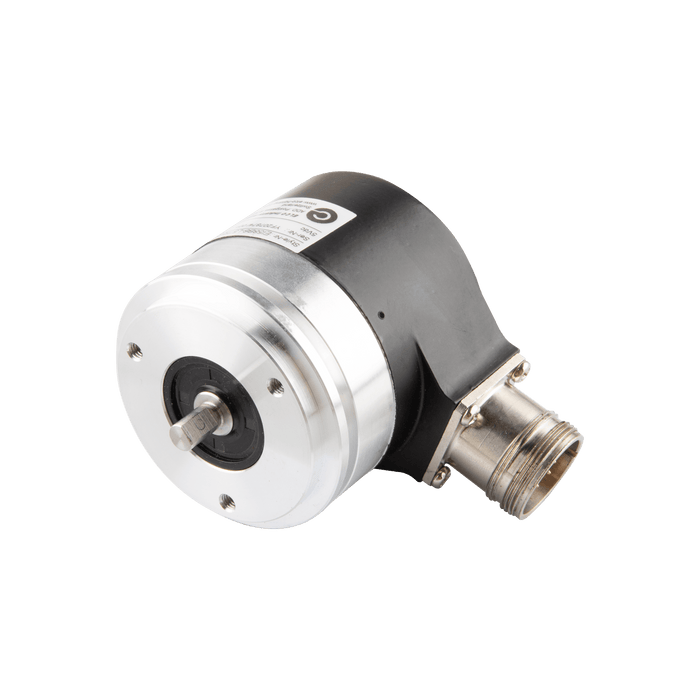

Shaft incremental encoder, EV58 Series, Synchro flange, Shaft Diameter 6g6 mm, Supply Voltage 5 VDC, Output TTL(with inverted signal), Radial, M23 12Pin, Resoluteion 1000

EV58B6-L5TR-1000

SKU EV58B6-L5TR-1000
by ELCO Industrial Automation

Shaft incremental encoder, EV58 Series, Synchro flange, Shaft Diameter 6g6 mm, Supply Voltage 5 VDC, Output TTL(with inverted signal), Radial, M23 12Pin, Resoluteion 1000

$185.41 - $185.41
$185.41
$185.41 - $185.41
$185.41
Availability:
In stock

Shaft incremental encoder, EV58 Series, Synchro flange, Shaft Diameter 6g6 mm, Supply Voltage 5 VDC, Output TTL(with inverted signal), Radial, M23 12Pin, Resoluteion 1000

Specifications

Model Incremental encoder
Housing material Al-alloy
Housing diameter 58 mm
IP rating Solid shaft
Flange type Solid shaft
Shaft type Solid shaft
Shaft diameter 6 mm
Max load capacity of the shaft 60 N Axial120 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 1.9 x 10-6 kgm2
Starting torque ＜ 0.

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV58A_V1.0_EN.pdf
3D Drawing CAD_E_EV58B6-xxTR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
