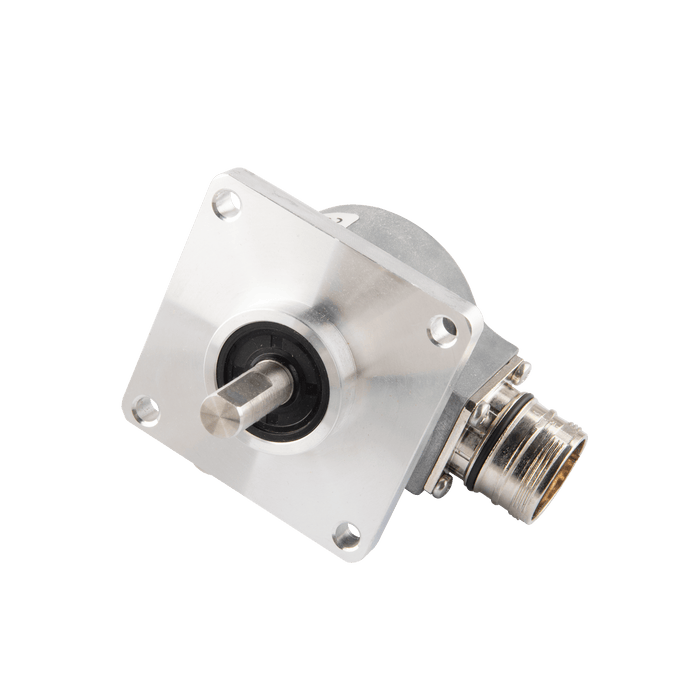

Shaft incremental encoder, EV50 Series, φ63.5 mm Square flange, Shaft Diameter 8g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, M23 12Pin, Resoluteion 500

EV50D8-P6PR-500T

SKU EV50D8-P6PR-500T
by ELCO Industrial Automation

Shaft incremental encoder, EV50 Series, φ63.5 mm Square flange, Shaft Diameter 8g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, M23 12Pin, Resoluteion 500

$180.64 - $180.64
$180.64
$180.64 - $180.64
$180.64
Availability:
In stock

Shaft incremental encoder, EV50 Series, φ63.5 mm Square flange, Shaft Diameter 8g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, M23 12Pin, Resoluteion 500

Specifications

Housing material Al-alloy
Housing diameter 50 mm
IP rating IP65
Flange type Clamping flange
Shaft type Solid shaft
Max load capacity of the shaft 40 N Axial80 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 1.9 x 10-6 kgm2
Starting torque ＜ 0.01 N·m
Shock resistance 50 g, 11 ms

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50A_V1.0_EN.pdf
3D Drawing CAD_E_EV50D8(R)-xxPR-xxxxT_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
