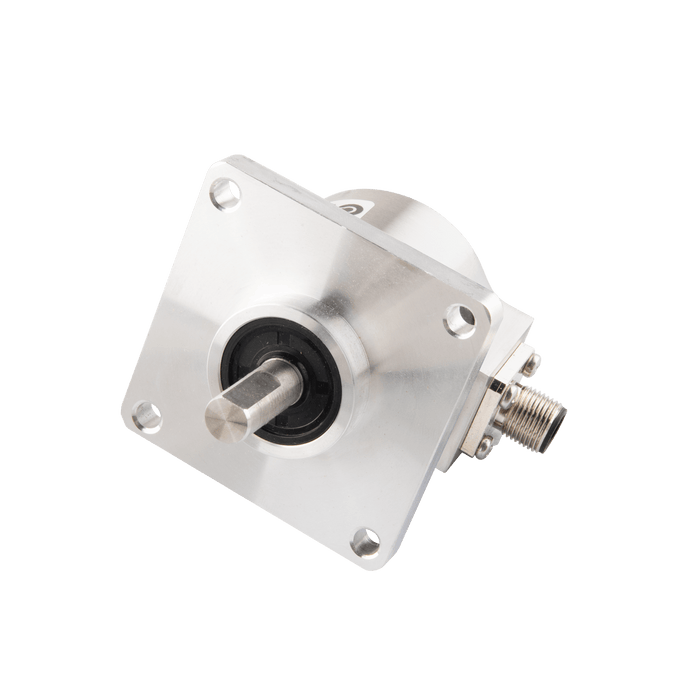

Shaft incremental encoder, EV50 Series, φ63.5 mm Square flange, Shaft Diameter 8g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, M12 8Pin, Resoluteion 1000

EV50D8-P6PR-1000M8

SKU EV50D8-P6PR-1000M8
by ELCO Industrial Automation

Shaft incremental encoder, EV50 Series, φ63.5 mm Square flange, Shaft Diameter 8g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, M12 8Pin, Resoluteion 1000

$166.19 - $166.19
$166.19
$166.19 - $166.19
$166.19
Availability:
In stock

Shaft incremental encoder, EV50 Series, φ63.5 mm Square flange, Shaft Diameter 8g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, M12 8Pin, Resoluteion 1000

Specifications

Model Incremental encoder
Housing material Al-alloy
Housing diameter 50 mm
IP rating IP65
Flange type Clamping flange
Shaft type Solid shaft
Shaft diameter 8 mm
Max load capacity of the shaft 40 N Axial80 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 1.9 x 10-6 kgm2
Starting torque ＜ 0.01 N

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50A_V1.0_EN.pdf
3D Drawing CAD_E_EV50D8(R)-xxPR-xxxxM8_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
