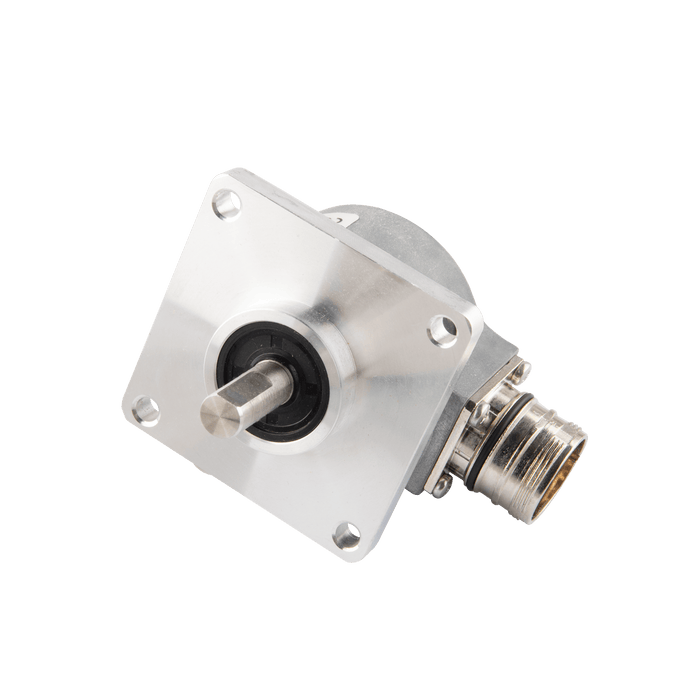

Shaft incremental encoder, EV50 Series, φ63.5 mm Square flange, Shaft Diameter 8g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M23 12Pin, Resoluteion 1000

EV50D8-H6PR-1000T

SKU EV50D8-H6PR-1000T
by ELCO Industrial Automation

Shaft incremental encoder, EV50 Series, φ63.5 mm Square flange, Shaft Diameter 8g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M23 12Pin, Resoluteion 1000

$188.28 - $188.28
$188.28
$188.28 - $188.28
$188.28
Availability:
In stock

Shaft incremental encoder, EV50 Series, φ63.5 mm Square flange, Shaft Diameter 8g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, M23 12Pin, Resoluteion 1000

Specifications

Model Incremental encoder
Housing material Al-alloy
Housing diameter 50 mm
IP rating IP65
Flange type Clamping flange
Shaft type Solid shaft
Shaft diameter 8 mm
Max load capacity of the shaft 40 N Axial80 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 1.9 x 10-6 kgm2
Starting torque ＜ 0.01 N

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50A_V1.0_EN.pdf
3D Drawing CAD_E_EV50D8(R)-xxPR-xxxxT_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
