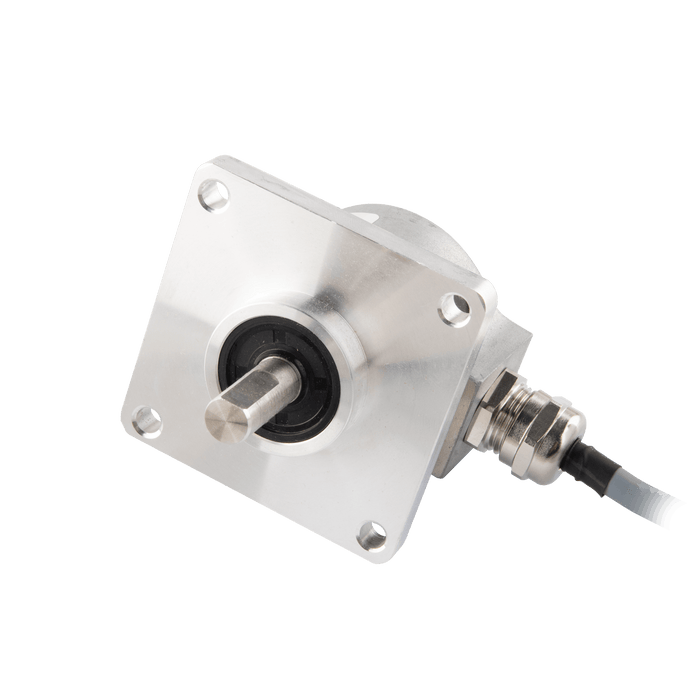

Shaft incremental encoder, EV50 Series, φ63.5 mm Square flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, Cable 1 m, Resoluteion 5000

EV50D10-H6PR-5000.CN0010

SKU EV50D10-H6PR-5000.CN0010
by ELCO Industrial Automation

Shaft incremental encoder, EV50 Series, φ63.5 mm Square flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, Cable 1 m, Resoluteion 5000

$233.31 - $233.31
$233.31
$233.31 - $233.31
$233.31
Availability:
In stock

Shaft incremental encoder, EV50 Series, φ63.5 mm Square flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(with inverted signal), Radial, Cable 1 m, Resoluteion 5000

Specifications

Supply voltage 10 ... 30 V DC
Output logic Push-pull HTL with inverted signal
Permissible load(channel) ±30 mA
Pulse frequency 300 kHz
Connection type Cable outlet
Cable length 1 m
Model Incremental encoder
Housing material Al-alloy
Housing diameter 50 mm
IP rating IP65
Flange type Clamping flan

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50A_V1.0_EN.pdf
3D Drawing CAD_E_EV50D10(R)-xxPR-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
