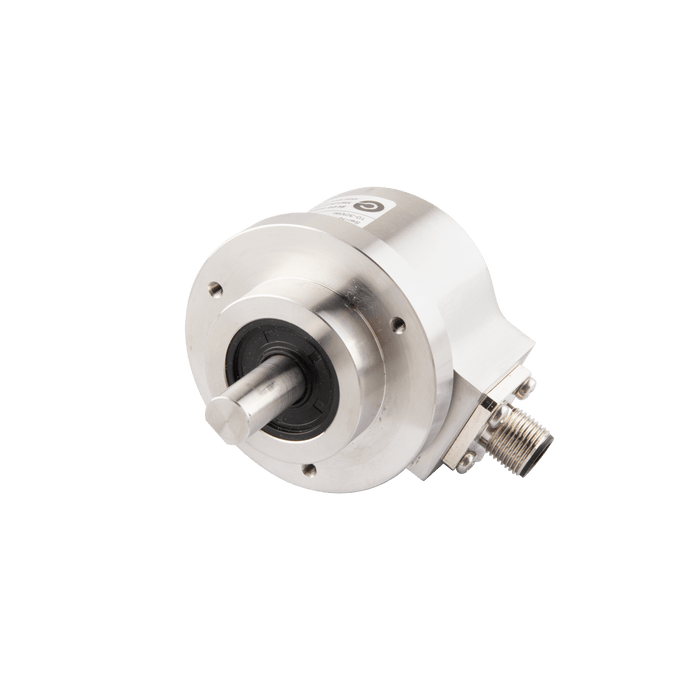

Shaft incremental encoder, EV50 Series, Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, M12 5Pin, Resoluteion 5000

EV50C10-P6PR-5000M5

SKU EV50C10-P6PR-5000M5
by ELCO Industrial Automation

Shaft incremental encoder, EV50 Series, Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, M12 5Pin, Resoluteion 5000

$243.54 - $243.54
$243.54
$243.54 - $243.54
$243.54
Availability:
In stock

Shaft incremental encoder, EV50 Series, Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-pull(without inverted signal), Radial, M12 5Pin, Resoluteion 5000

Specifications

Model Incremental encoder
Housing material Al-alloy
Housing diameter 50 mm
IP rating IP65
Flange type Clamping flange
Shaft type Solid shaft
Shaft diameter 10 mm
Max load capacity of the shaft 40 N Axial80 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 1.9 x 10-6 kgm2
Starting torque ＜ 0.01

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50A_V1.0_EN.pdf
3D Drawing CAD_E_EV50C10(R)-xxPR-xxxxM5_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
