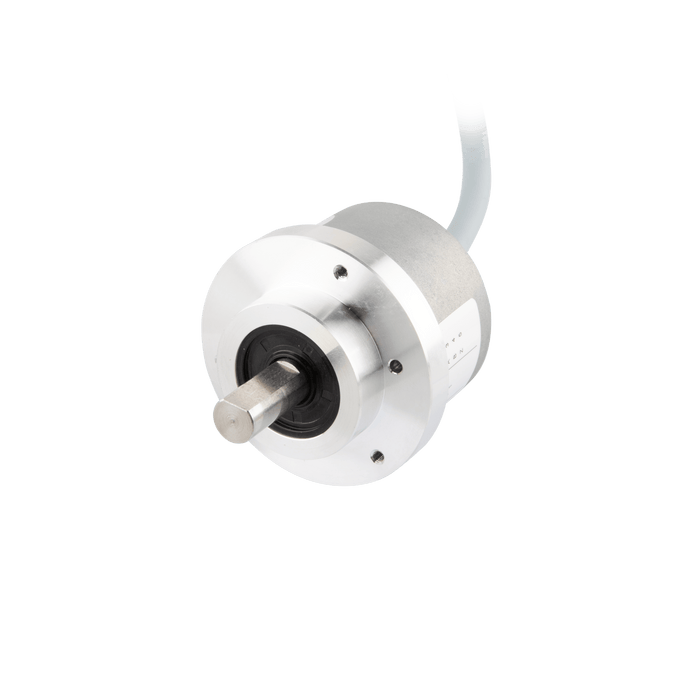

Shaft incremental encoder, EV50 Series, Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-Pull(without inverted signal), Axial, Cable 1.5 m, Resoluteion 100

EV50C10-P6PA-100

SKU EV50C10-P6PA-100
by ELCO Industrial Automation

Shaft incremental encoder, EV50 Series, Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-Pull(without inverted signal), Axial, Cable 1.5 m, Resoluteion 100

$152.39 - $152.39
$152.39
$152.39 - $152.39
$152.39
Availability:
In stock

Shaft incremental encoder, EV50 Series, Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10...30 VDC, Output Push-Pull(without inverted signal), Axial, Cable 1.5 m, Resoluteion 100

Specifications

Shaft diameter 10 mm
Permissible load(channel) ±30 mA
Model Incremental encoder
Housing material Al-alloy
Housing diameter 50 mm
IP rating IP65
Flange type Clamping flange
Shaft type Solid shaft
Max load capacity of the shaft 40 N Axial80 N Radial
Max Speed(rpm) 6000 rpm
Moment of inertia 1.9 x

No additional information at this time.

Downloads

CE CE_E_Incremental_V1.0_EN.pdf
UL UL_E_EB-EC-EV-EX_V1.0_EN.pdf
Datasheet DS_E_EV50A_V1.0_EN.pdf
3D Drawing CAD_E_EV50C10(R)-xxPA-xxxx_V1.0.stp
Manual UM_E_EB-EC-EV-EI-ET-ESS_V1.0_EN&CN.pdf
